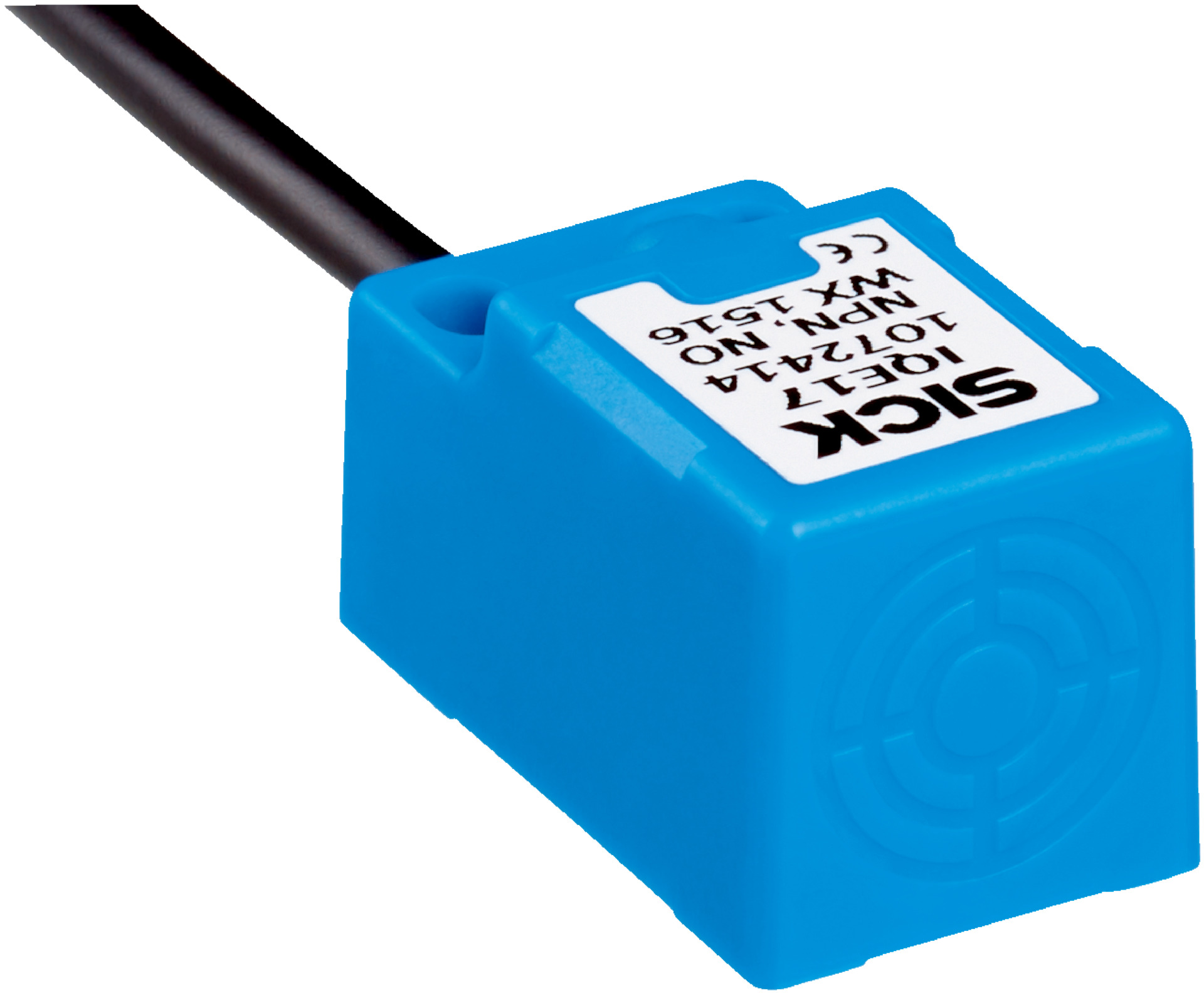

Inductive Proximity Sensor | 5 mm Sensing Range | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precise object detection with a 5 mm sensing range and a high switching frequency of 1,000 Hz. Ideal for industrial automation and control applications, this sensor features a robust IP67 rated enclosure for dust and water protection, ensuring reliable performance in challenging environments. With a non-flush installation type and PNP normally closed output, it’s perfect for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 5 mm
- Safe sensing range Sa: 4.05 mm
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, Normally Closed (NC)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Short-circuit and power-up pulse protection included
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Plastic
- Tightening torque max: 0.9 Nm
- Enclosure rating: IP67
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 17mm x 29.5mm x 17mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 rated enclosure for dust and water protection
- Non-flush installation type with 5 mm sensing range
- High switching frequency of 1,000 Hz for fast response
- PNP normally closed switching output with 3-wire DC electrical wiring
- Cable connection type with 2 m PVC cable
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +75 °C
- Robust plastic housing with maximum tightening torque of 0.9 Nm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient DC 3-wire operation
- Robust IP67 rating protects against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

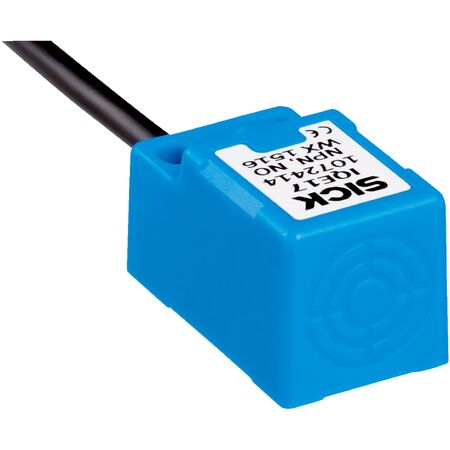

The SICK IQE17-05NPOKW2S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications.
