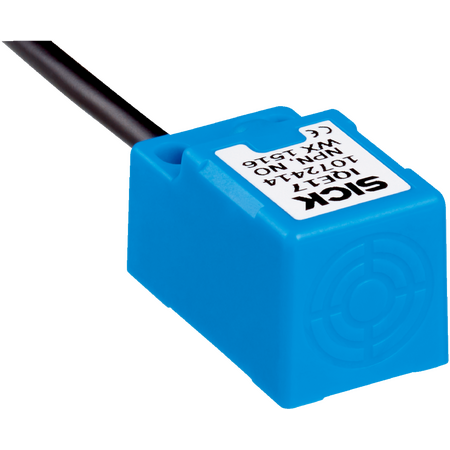

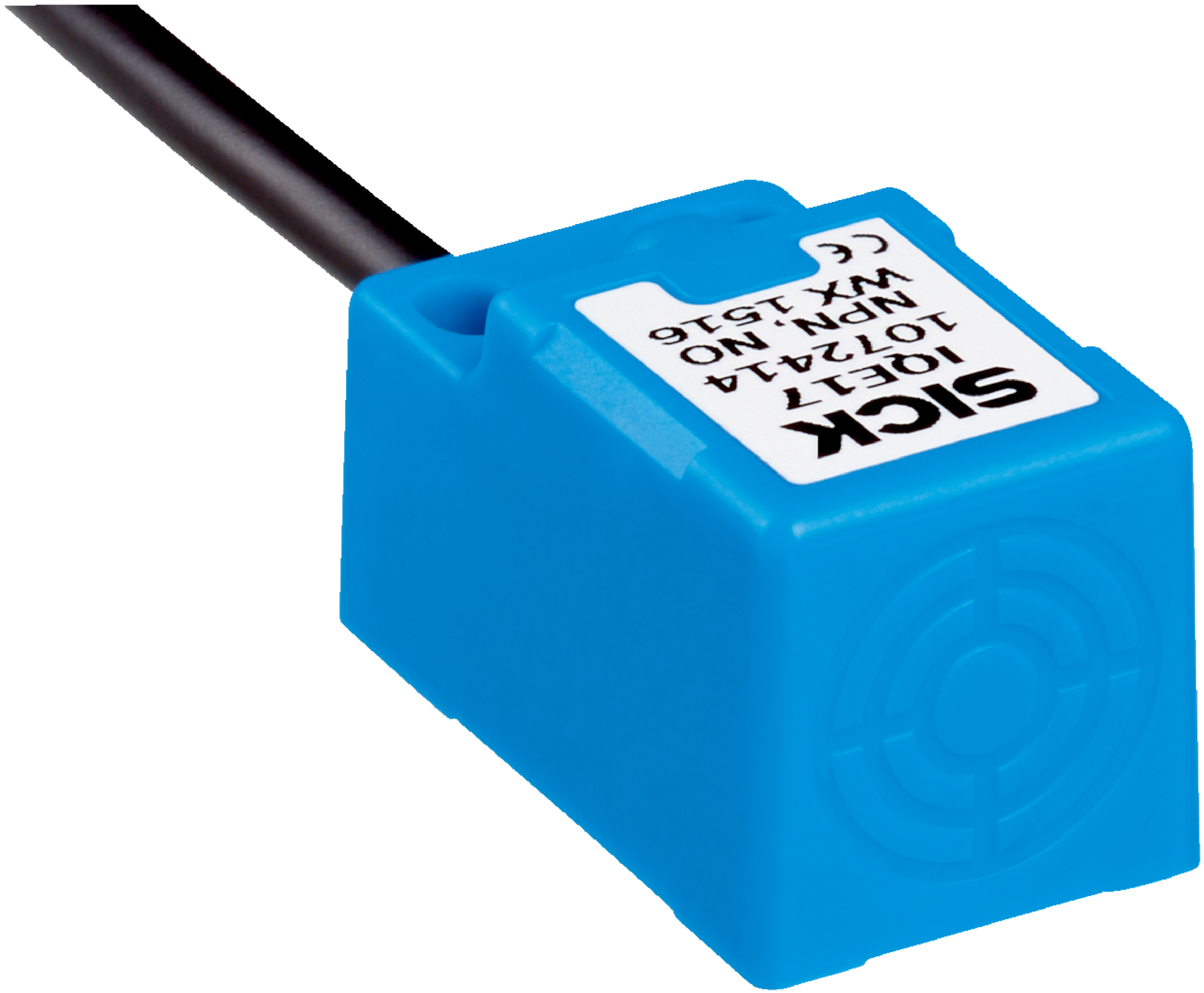

Inductive Proximity Sensor | 5 mm Sensing Range | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 5 mm sensing range and an impressive 1000 Hz switching frequency. With its durable IP67 rated housing, it ensures protection against dust and water, making it ideal for harsh environments. This sensor is perfect for manufacturing process control and safety systems, providing non-contact sensing capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor, Proximity Switch, Inductive Sensor, Non-flush Proximity Sensor
Technical Specifications
- Sensing range (Sn): 5 mm
- Safe sensing range (Sa): 4.05 mm
- Switching frequency: 1,000 Hz
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable length: 2 m, PVC material
- Reverse polarity, short-circuit, and power-up pulse protection
- Operating temperature: -25 °C to +75 °C
- Housing material: Plastic
- Tightening torque max: 0.9 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 17mm x 29.5mm x 17mm
- Weight: 0.1 kg
Key Features
- Rectangular plastic housing with IP67 rating for dust and water protection
- Non-flush installation type with 5 mm sensing range
- High switching frequency of 1,000 Hz for fast response
- NPN normally open (NO) switching output with 3-wire DC connection
- Reverse polarity, short-circuit, and power-up pulse protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Operating temperature range from -25 °C to +75 °C
- Cable connection with 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and positioning systems
- Non-contact sensing in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQE17-05NNSKW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
