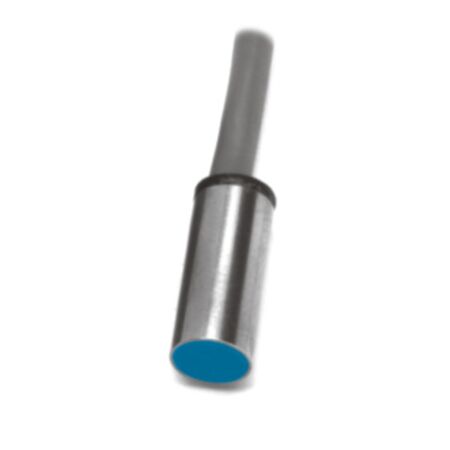

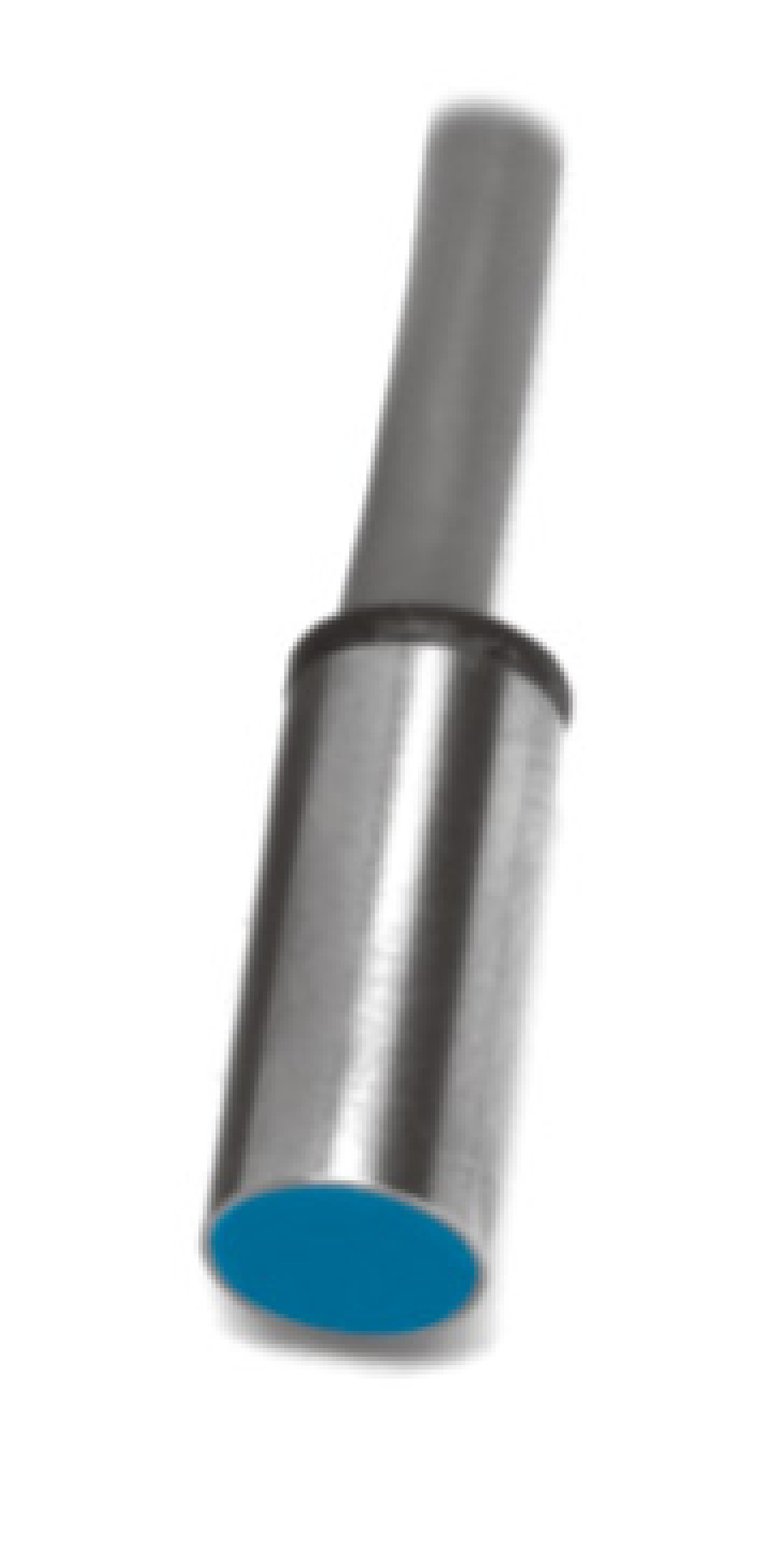

Inductive Proximity Sensor | 6.5mm Diameter | 5,000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a compact 6.5mm diameter and a high switching frequency of 5,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for flush mounting in tight spaces and machinery position sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 6.5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Voltage ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, POM
- Cable diameter: 3.5 mm
- Conductor size: 0.14 mm²
- Short-circuit protection: Yes
- Ambient operating temperature: –25 °C to +70 °C
- EMC standards: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Angled cable connection with 2 m PVC cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Flush mounting in tight spaces requiring short sensor length
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IH06-1B5PS-VWXS01 inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
