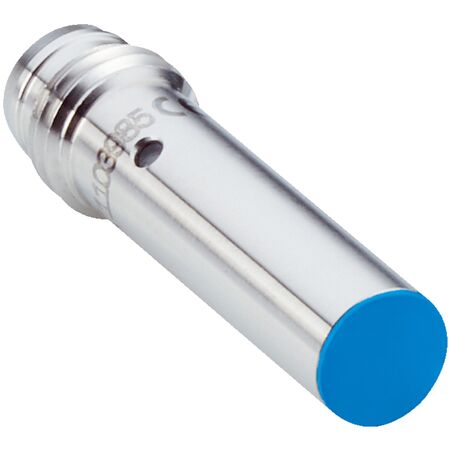

Inductive Proximity Sensor | 6.5 mm Diameter | High Switching Frequency 5000 Hz | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a compact 6.5 mm diameter and a high switching frequency of 5,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and machine safety applications. The visual adjustment indicator simplifies setup, while the durable stainless steel housing enhances longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Visual adjustment indicator included
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 6.5 mm diameter
- Flush installation type
- High switching frequency of 5,000 Hz
- NPN switching output with NC function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BNOVT0G Inductive Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
