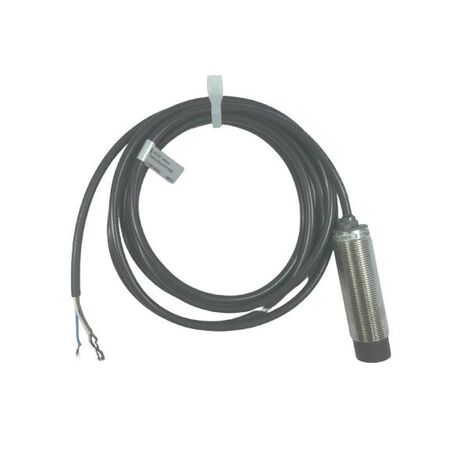

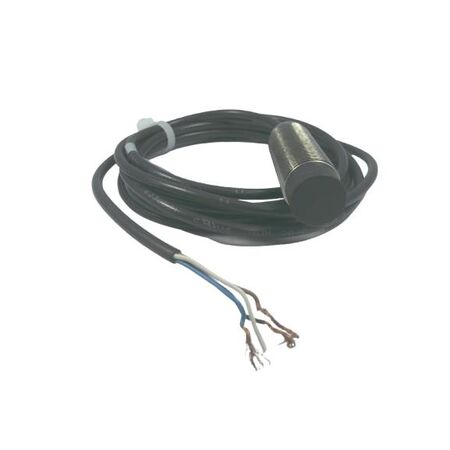

Inductive Proximity Sensor 872CN12BP18E2 | 18mm Diameter | 12mm Sensing Range | PNP Output | by Allen-Bradley
The Inductive Proximity Sensor 872CN12BP18E2 features an 18mm barrel diameter and a 12mm sensing range, making it ideal for industrial automation and manufacturing process control. With a PNP output and a durable nickel brass construction, this sensor ensures reliable performance in robotics and material handling systems, while its low power consumption enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Inductive Proximity Sensor
- Series: 872C
- Barrel Diameter: 18mm
- Sensing Range: 12mm
- Output Type: PNP
- Cable Length: 2 meters PVC
- Current Rating: 200mA
- Operating Voltage: 10-30VDC
- Material: Nickel Brass
- Sensor Type: DC Unshielded Extended
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- 18mm standard barrel diameter
- 12mm sensing range
- PNP output contact form
- 2 meter PVC cable length
- Nickel brass material construction
- DC unshielded extended type
- Operating voltage 10-30VDC
- Maximum current 200mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and assembly lines
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life and reducing waste.
- Low power consumption contributes to energy efficiency in industrial systems.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 872CN12BP18E2 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
