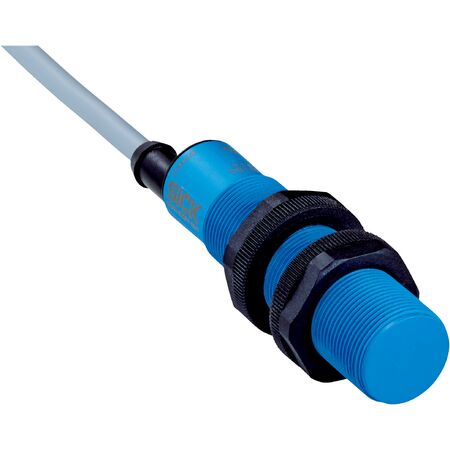

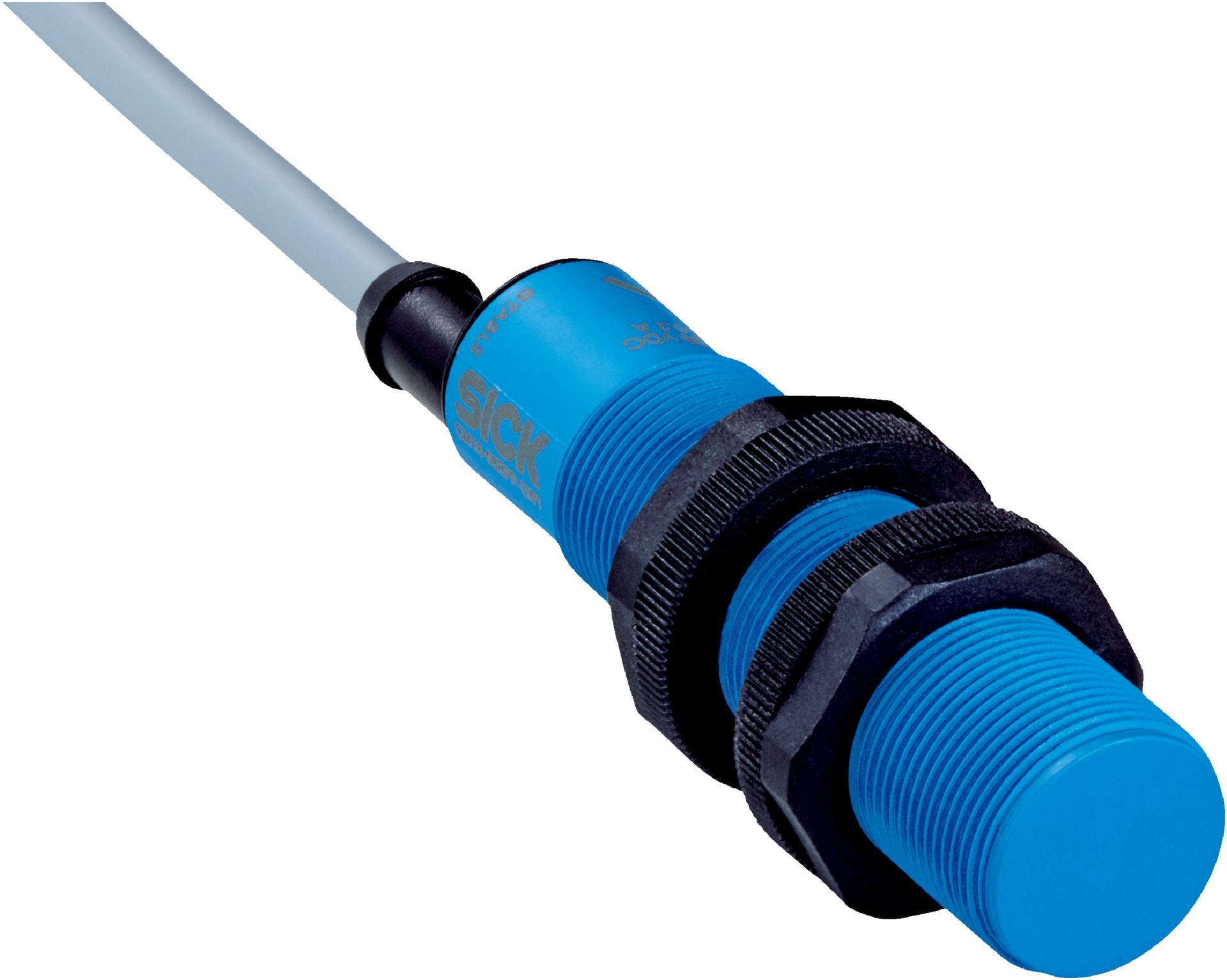

Inductive Proximity Sensor CM18-08BPP-EW1 | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor CM18-08BPP-EW1 is designed for precise object detection in industrial automation, featuring a sensing range of up to 8 mm and a safe sensing range of 6.12 mm. With a robust IP67/IP68/IP69K rating, this sensor is built to withstand harsh environments, making it ideal for manufacturing process control and conveyor system monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M18 x 1 thread size
- Sensing range Sn: 0 mm to 8 mm
- Safe sensing range Sa: 6.12 mm
- Switching frequency: 50 Hz
- Connection type: Cable, 4-wire, 2 m PVC cable
- Switching output: PNP, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Adjustment: Sensitivity potentiometer with 11 turns
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 36 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V DC
- Current consumption: 12 mA
- Time delay before availability: ≤ 200 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 5.2 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: According to EN 60068
- Ambient operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Housing length: 81 mm
- Thread length: 55 mm
- Tightening torque max: ≤ 2.6 Nm
- Dimensions (H x L x W): 18mm x 81mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation type with metric housing
- Sensing range up to 8 mm with safe sensing range of 6.12 mm
- PNP switching output with complementary wire configurable function
- High protection rating IP67, IP68, and IP69K for harsh environments
- Cable connection type with 4-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant according to EN 60068
- Wide ambient operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor system monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CM18-08BPP-EW1 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
