Trade Discount 25%

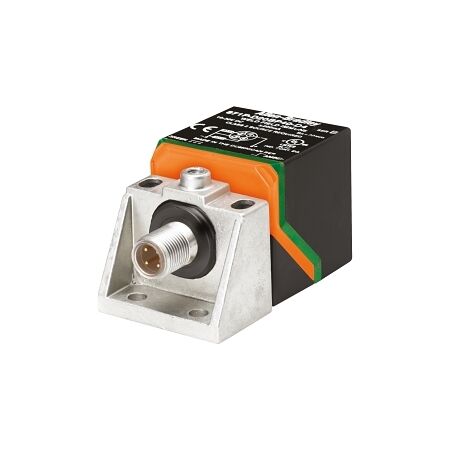

Inductive Proximity Sensor Cube 40mm | 20mm Range | PNP Output | IP67 Rated by NHP
Inductive proximity sensor with 20mm switching distance and PNP output—ideal for industrial automation. Built for durability, with IP67 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 871 Inductive Proximity Sensor Cube 40mm 10-30V DC 20mm NONC PNP Shld 4 Wire Micro 4 DC QD Brck
Brand: NHP
SKU: 871PD20BP40D4
Alternatively Known As: Inductive Proximity Switch, Proximity Sensor, Non-Contact Sensor
Technical Specifications
- Type of actuation: Metallic Target
- Switching distance: 20 mm
- Voltage type: DC
- Rated control supply voltage (DC): 10-30 V
- Max output current: 200 mA
- Switch function: Change-over contact
- Switching output: PNP
- Switching frequency: 40 Hz
- Electric connection: Plug-in connection
- Voltage drop: 5 V
- Degree of protection: IP67
- Material housing: Plastic
- Storage temperature: -25-70 °C
- Dimensions (H x L x W): 40mm x 30mm x 40mm
- Weight: 0.02 kg
Key Features
- Inductive proximity sensor with a switching distance of 20 mm.
- PNP output with a maximum output current of 200 mA.
- IP67 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation
- Manufacturing processes
- Material handling
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 871 Inductive Proximity Sensor Cube 40mm 10-30V DC is available now for immediate purchase, ideal for industrial automation applications.
