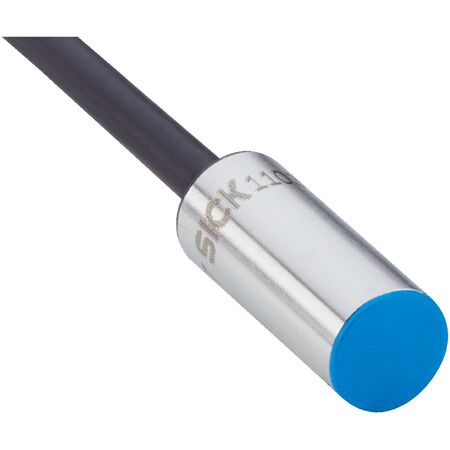

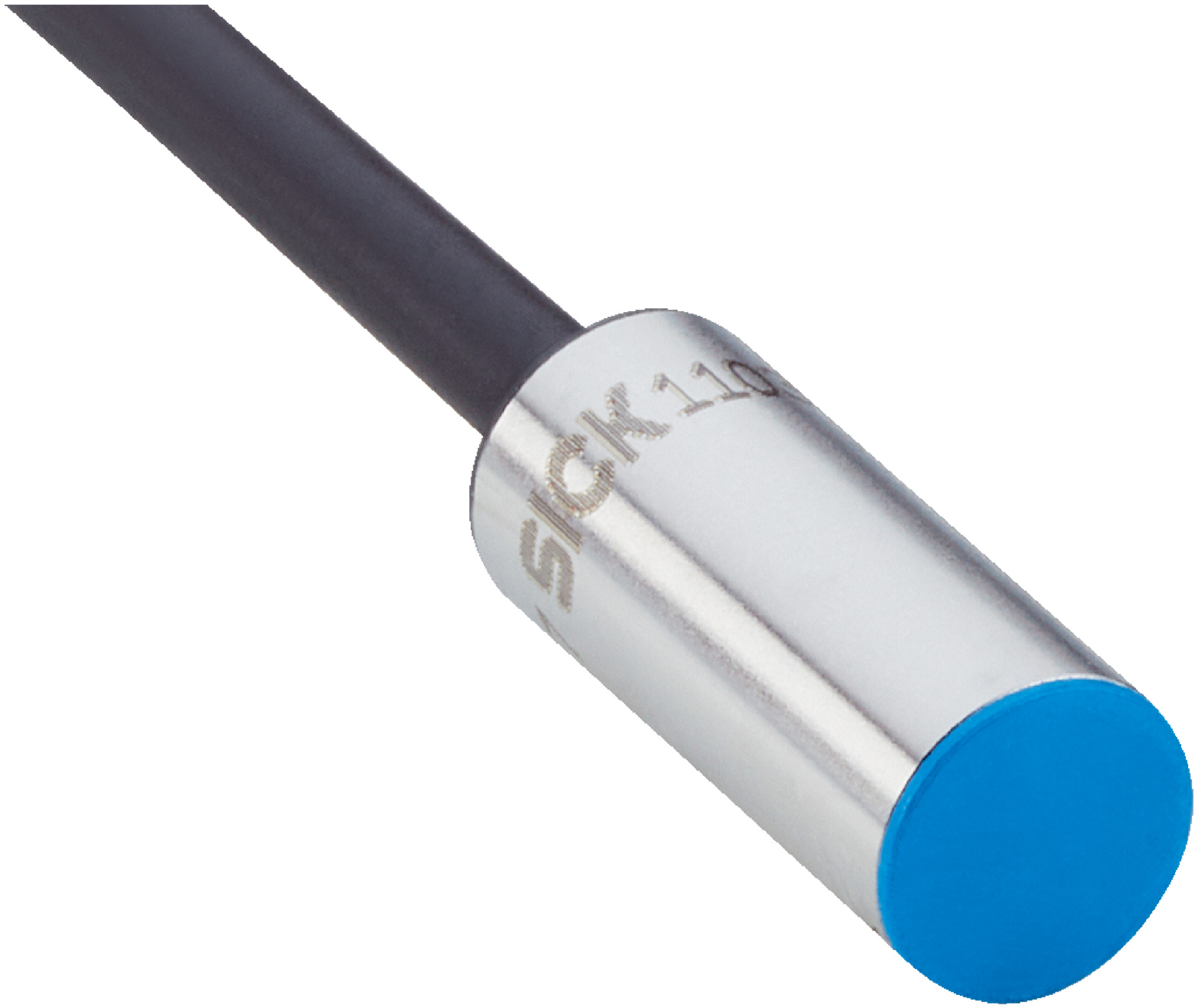

Inductive Proximity Sensor | Extremely Short Model | IP67 Rated | 5,000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-02BPOVW2G is designed for precise object detection in industrial automation. With an extremely short model and a sensing range of 2 mm, it features a high switching frequency of 5,000 Hz and an IP67 rated enclosure for dust and water protection. Ideal for manufacturing lines and safety systems, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Extremely short model, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC cable
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 2.9 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Short-circuit and power-up pulse protection: Yes
- Visual adjustment indicator included
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IHM06-02BPOVW2G inductive sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
