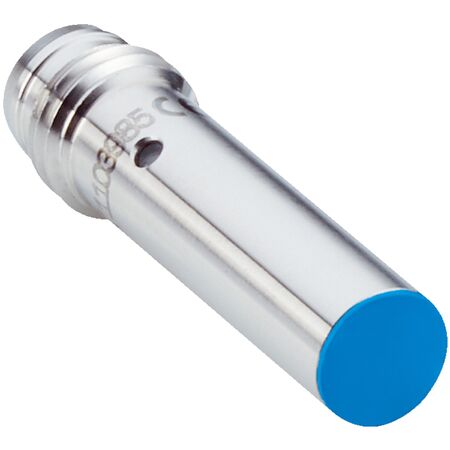

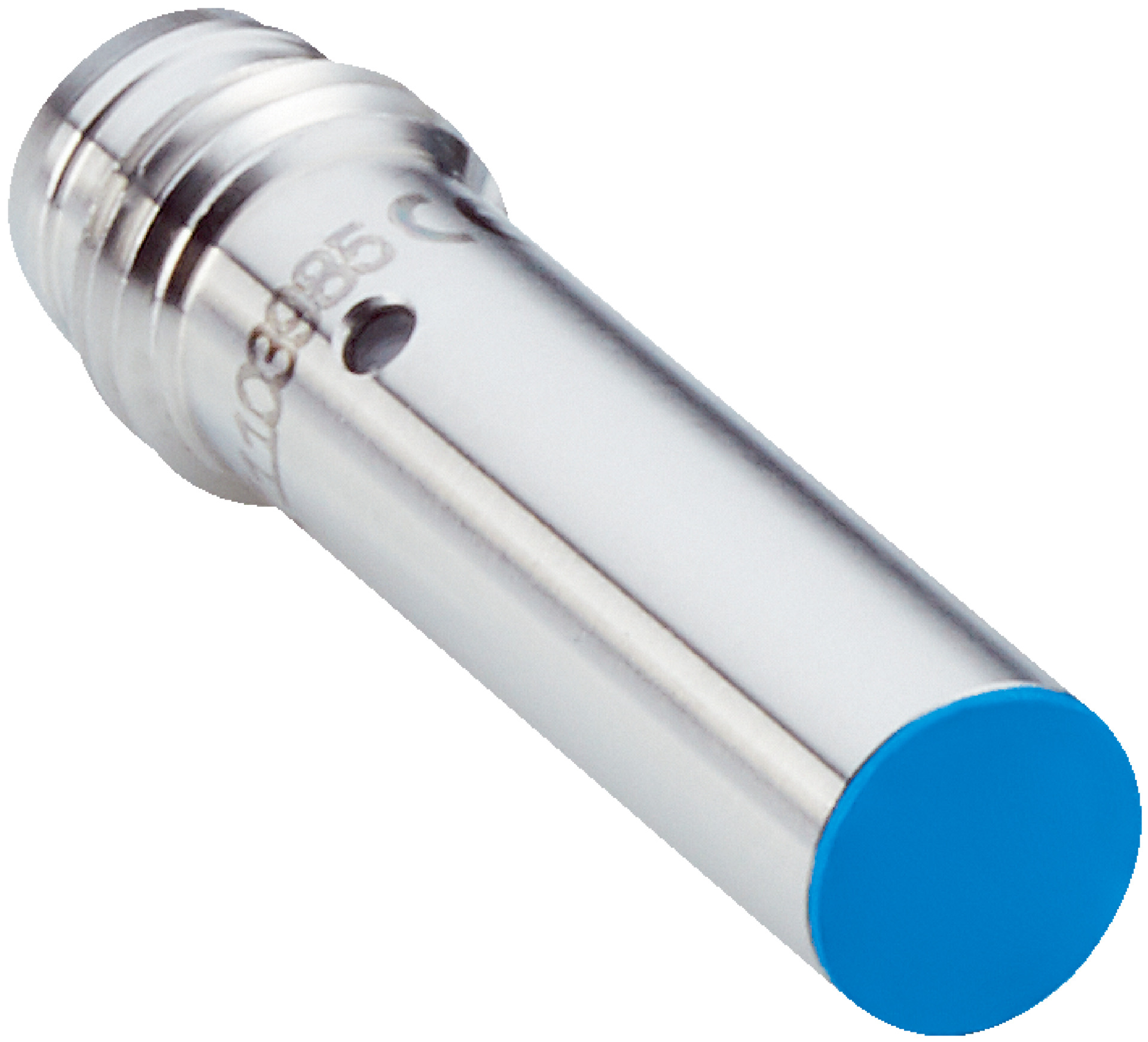

Inductive Proximity Sensor | Extremely Short Model | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-02BPOVT0G features an extremely short model with a 29 mm housing length, making it perfect for flush installations in tight spaces. With a high switching frequency of 5,000 Hz and an IP67 rated enclosure, it ensures reliable performance in industrial automation and machine safety applications. Designed for easy setup with a visual adjustment indicator, this sensor is ideal for position sensing and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Extremely short model, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Visual adjustment indicator included
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 29 mm housing length
- Flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with NC function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BPOVT0G inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
