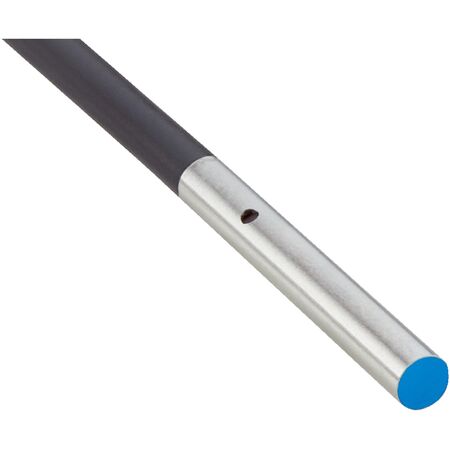

Inductive Proximity Sensor | Flush Mount | NPN Output | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for reliable metal detection in industrial automation. With a sensing range of 0.6 mm and a high switching frequency of 5,000 Hz, it ensures fast response times. Built for durability with an IP67 rated enclosure, this sensor is perfect for machine safety and control systems, making it an essential component for robotics and assembly line monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable diameter: Ø 2.5 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Switching output: NPN, normally open
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 6mm x 22mm x 6mm
- Weight: 0.1 kg
Key Features
- Flush installation type with standard housing design
- High switching frequency of 5,000 Hz for fast response
- NPN normally open switching output
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Cable connection type: 3-wire, 2 m PUR cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for metal detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Robotics and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-0B6NSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
