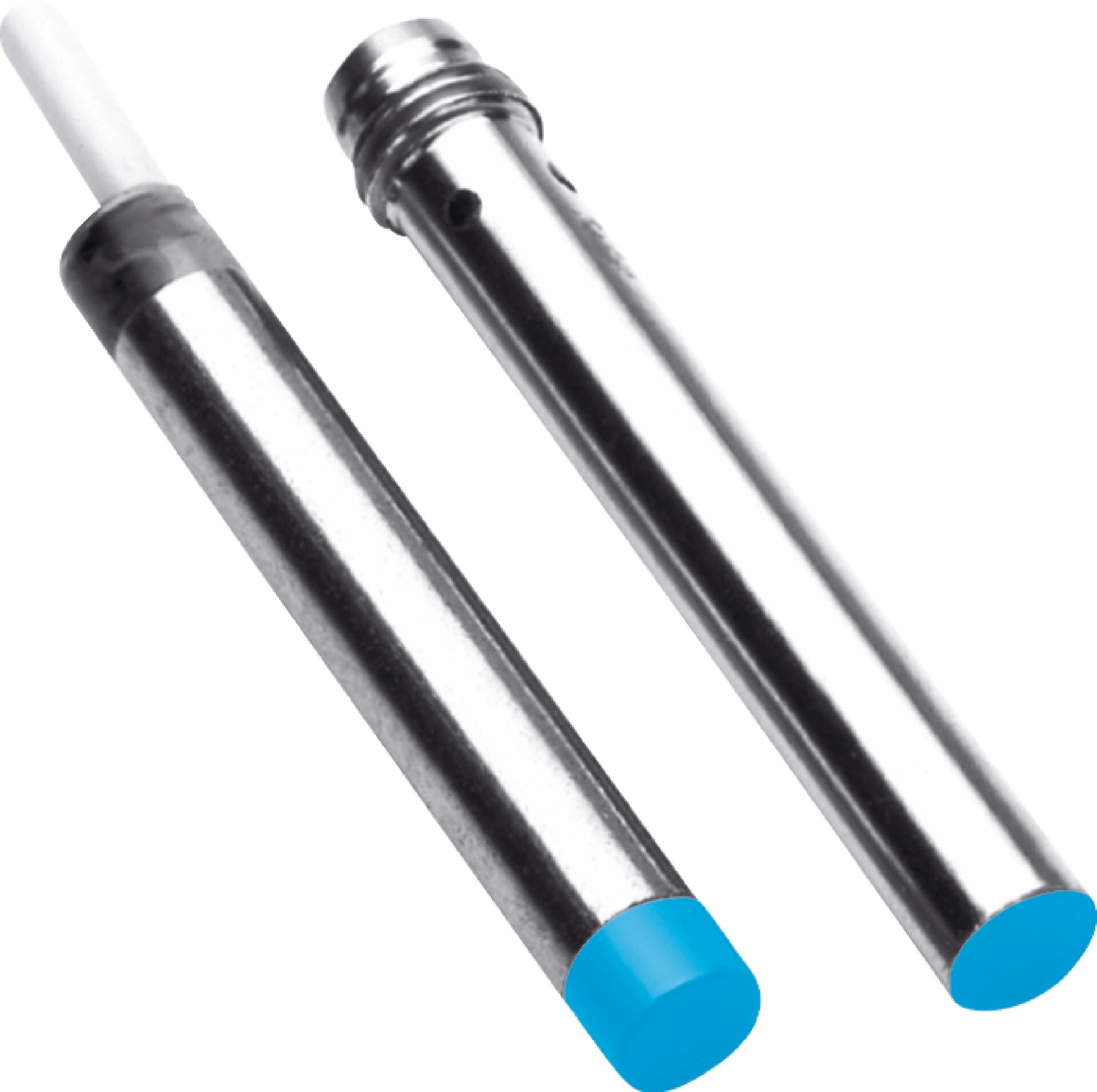

Inductive Proximity Sensor IH06-02BPS-VW1 | IP67 Rated | 2mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IH06-02BPS-VW1 is designed for precise object detection in industrial automation, featuring a 2mm sensing range and a high switching frequency of 5,000 Hz. With its durable stainless steel housing and IP67 rating, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Quasi-flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift (of Sr): ± 10%
- EMC: EN 60947-5-2, IEC 61000-4-2 (Testlevel 2), IEC 61000-4-4 (Testlevel 3)
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC
- Conductor size: 0.14 mm²
- Cable diameter: Ø 3.1 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, POM
- Housing length: 45 mm
- Dimensions (H x L x W): 6.5mm x 45mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Quasi-flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Cable connection type, 3-wire, 2 m length
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IH06-02BPS-VW1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
