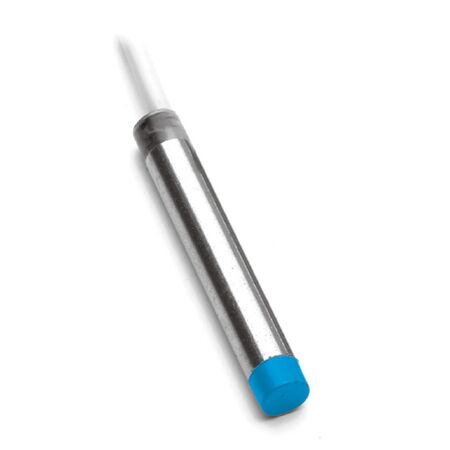

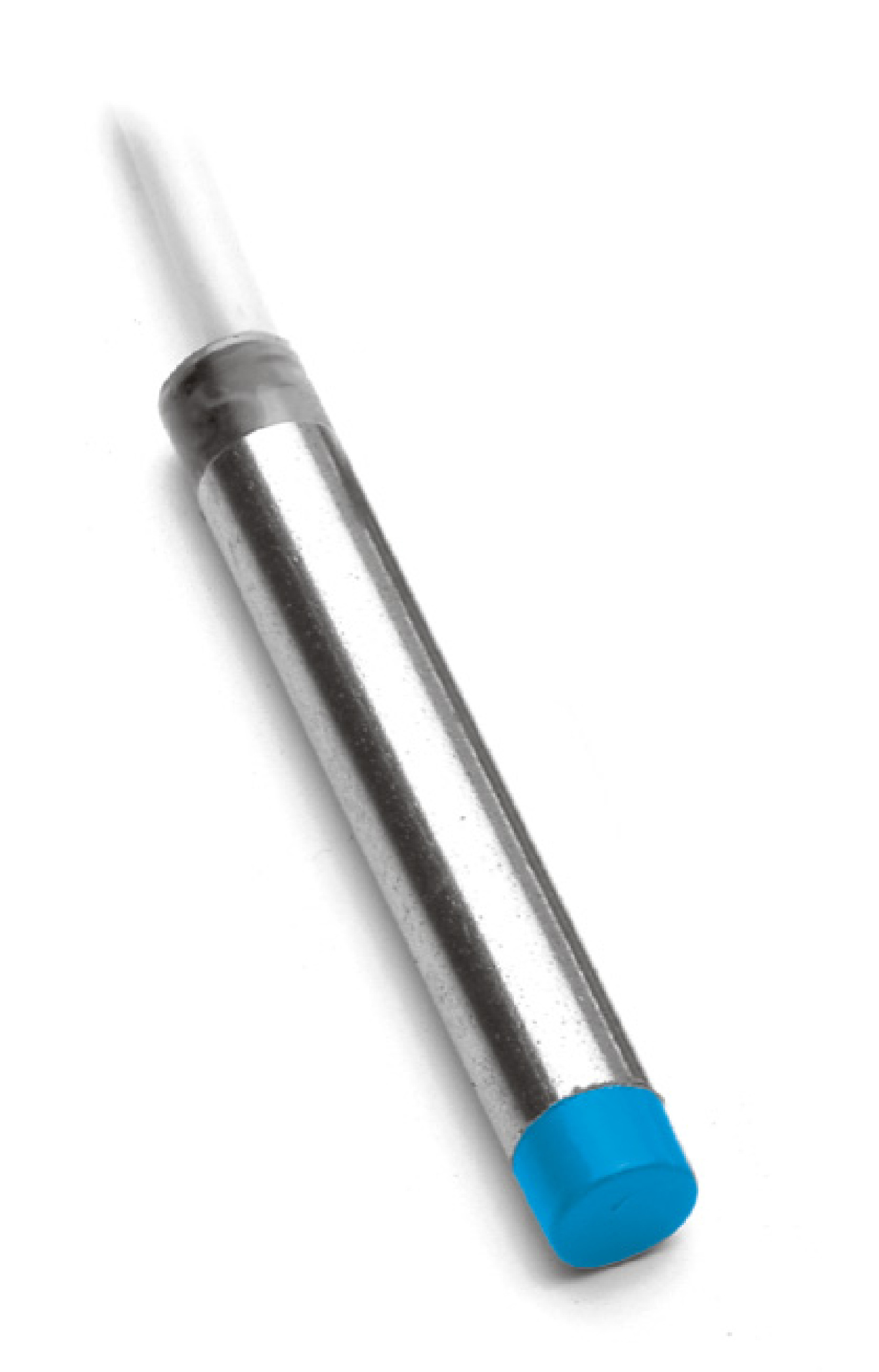

Inductive Proximity Sensor IH06-04NPS-VW1 | IP67 Rated | 4mm Sensing Range | 1800 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IH06-04NPS-VW1 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a high switching frequency of 1,800 Hz. With its durable stainless steel housing and IP67 rating, this sensor is perfect for non-contact switching in machinery, ensuring longevity and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 1,800 Hz
- Connection type: Cable, 3-wire, 2 m PVC cable
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.1 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, POM
- Dimensions (H x L x W): 6.5mm x 45mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 1,800 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type: 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable stainless steel housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IH06-04NPS-VW1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
