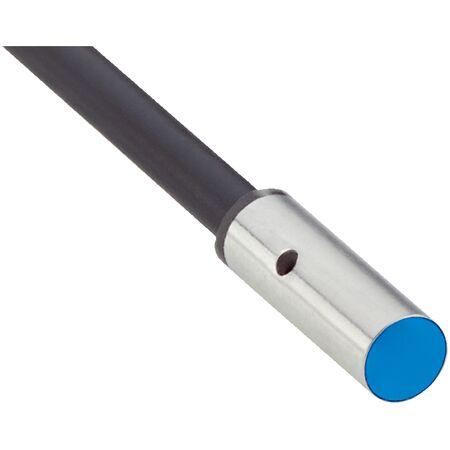

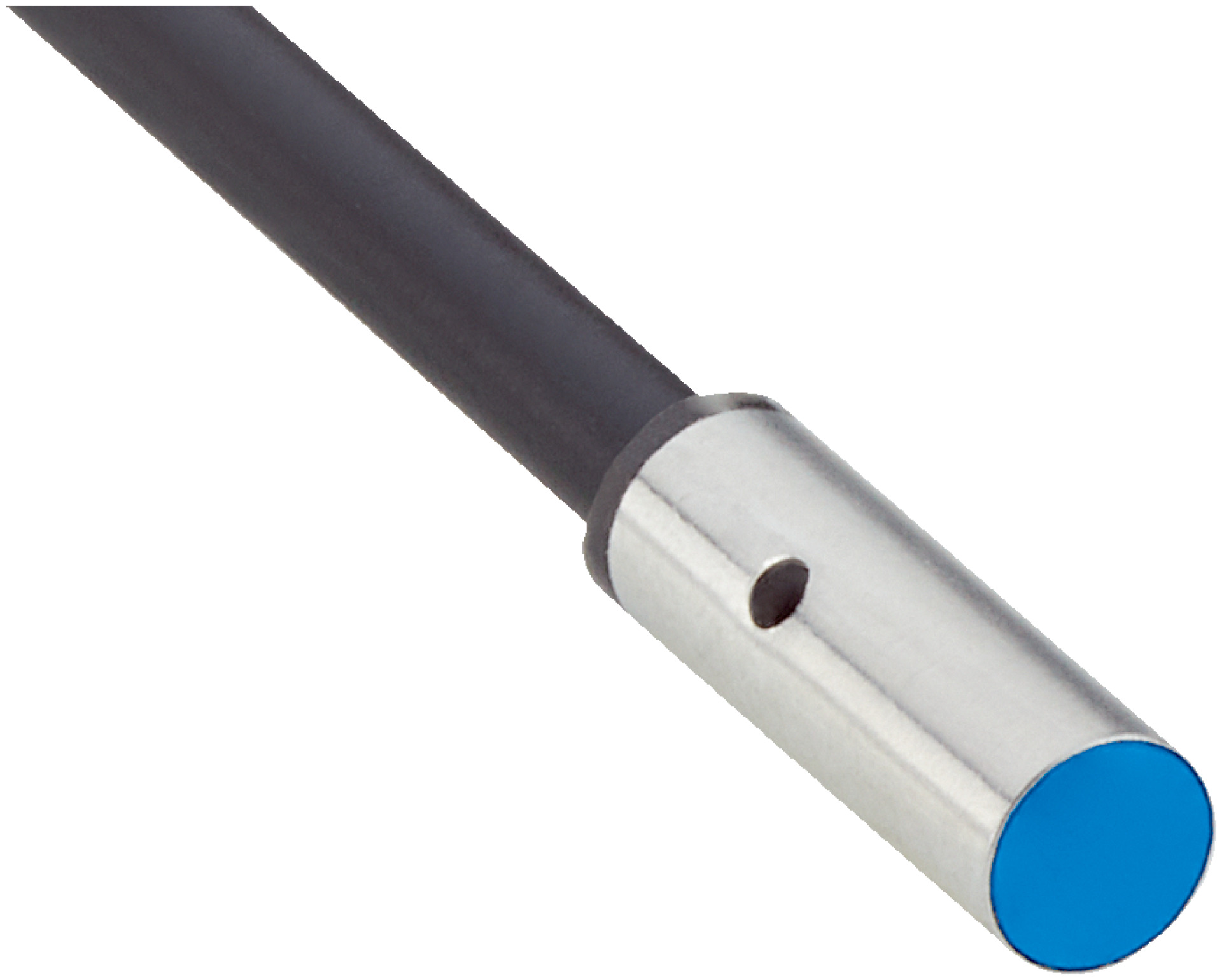

Inductive Proximity Sensor IHM04-1B5PSVU2K | IP67 Rated | High Switching Frequency | Stainless Steel Housing | by SICK
The Inductive Proximity Sensor IHM04-1B5PSVU2K is designed for industrial automation, featuring a high switching frequency of 4,800 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and robust stainless steel housing, it's perfect for machine safety and metal detection applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, diameter Ø 2.9 mm, conductor size 0.14 mm²
- Short-circuit and power-up pulse protection included
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 10.4 ms
- Process data length: 1 Byte with bit structure indicating sensing range status
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature range: –25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Dimensions (H x L x W): 4mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 4 mm diameter
- Flush installation type
- Sensing range Sn of 1.5 mm with safe sensing range Sa of 1.215 mm
- High switching frequency of 4,800 Hz
- PNP switching output with normally open (NO) function
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM04-1B5PSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise metal object detection.
