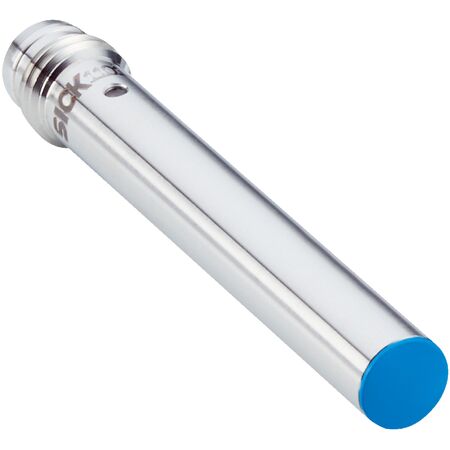

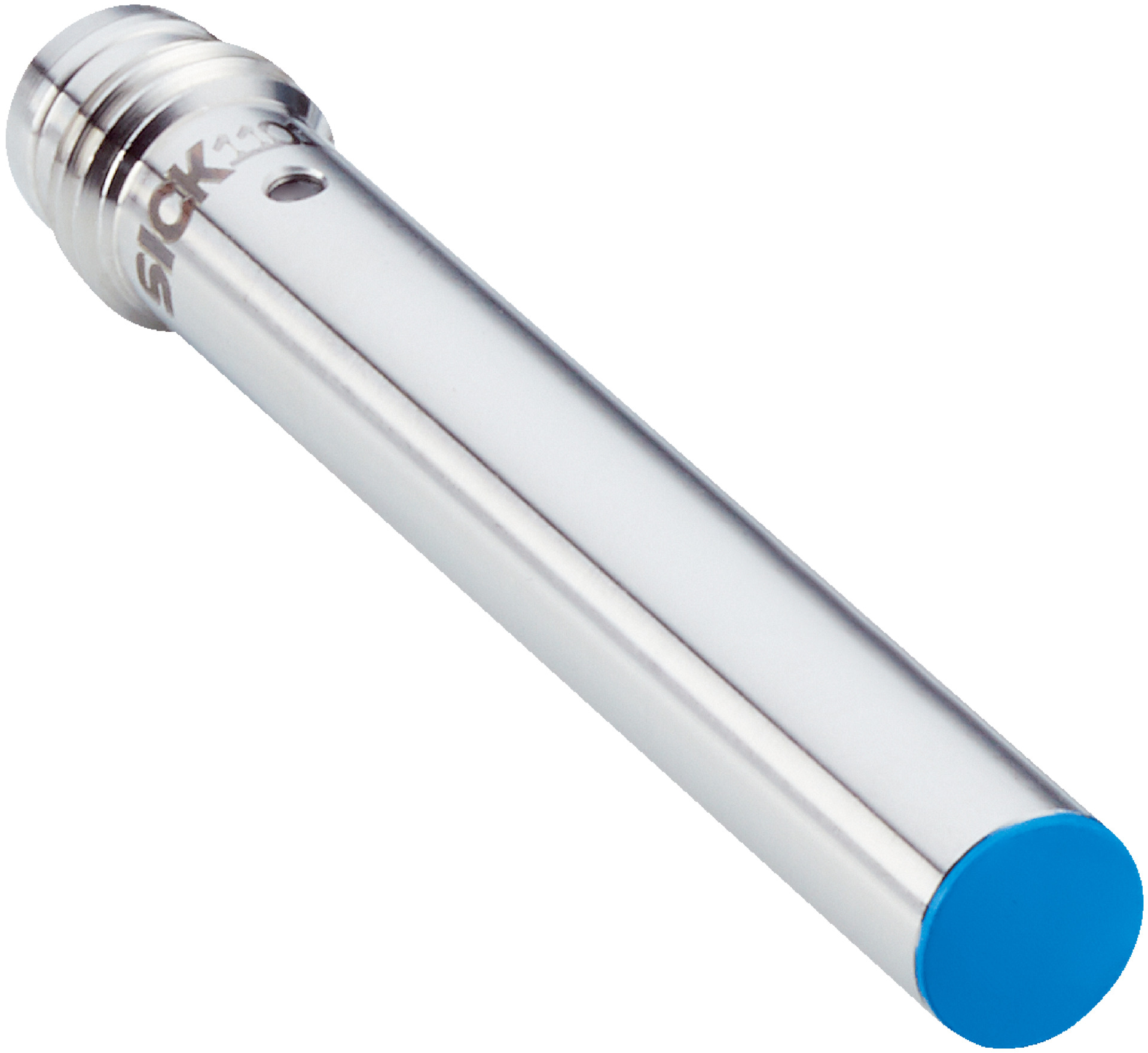

Inductive Proximity Sensor IHM06-02BPOVT0S | IP67 Rated | 2mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-02BPOVT0S is designed for precise object detection in industrial automation. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in harsh environments. Featuring a sensing range of 2 mm and a high switching frequency of 5,000 Hz, this sensor is perfect for machine safety and control systems, making it an essential component for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, NC output function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 50 mm
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- Connector M8, 3-pin connection type
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-02BPOVT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
