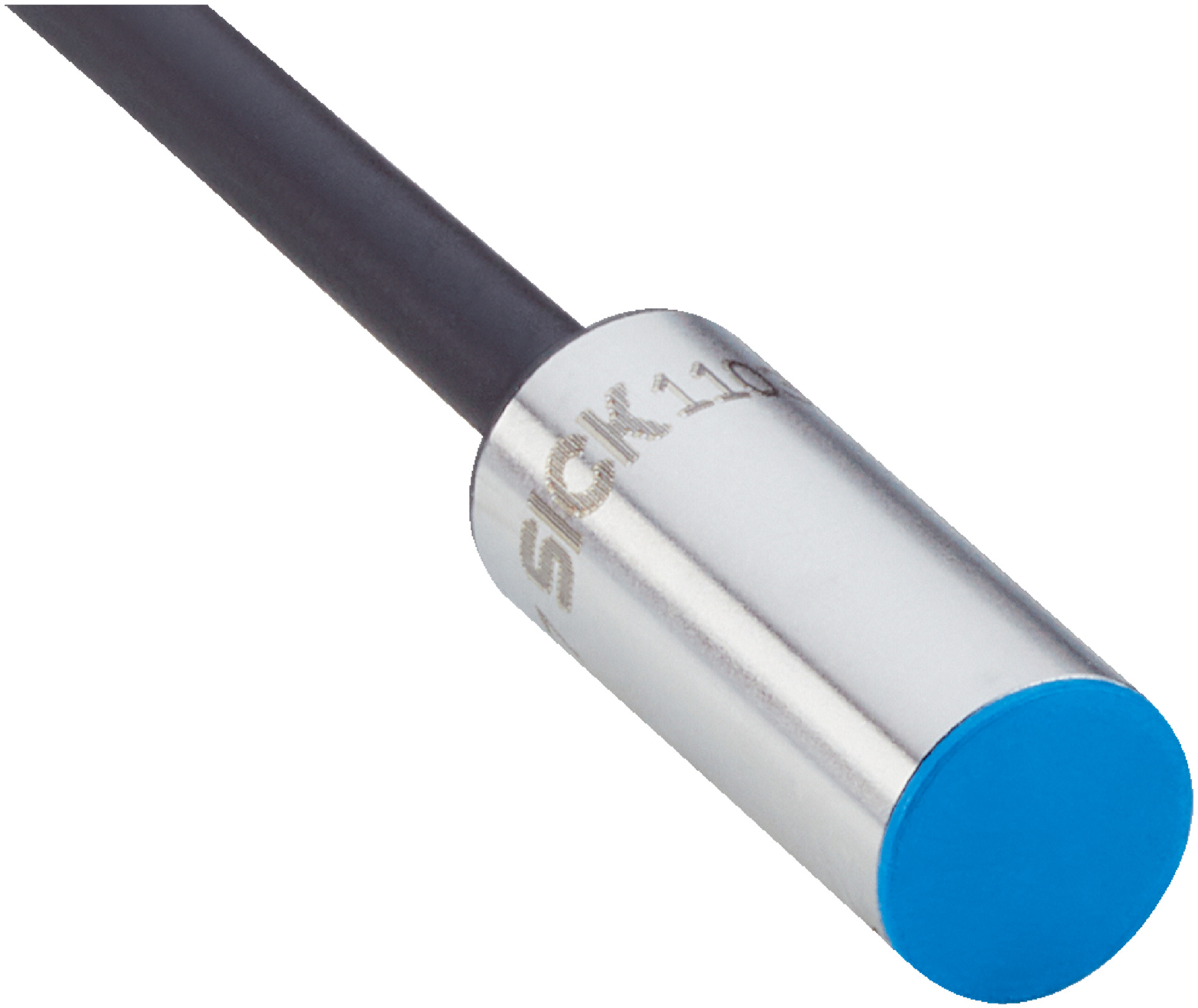

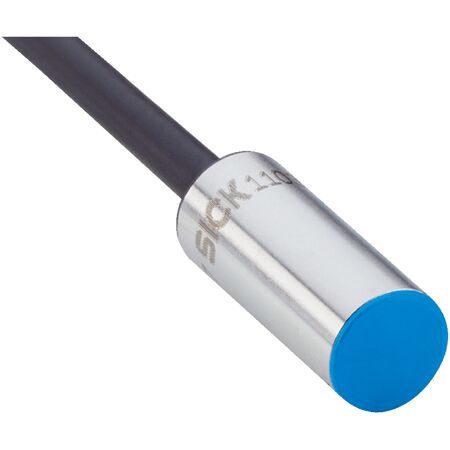

Inductive Proximity Sensor IHM06-03BNSVW2G | 3mm Sensing Range | IP67 Rated | 1500Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-03BNSVW2G features a compact 16 mm stainless steel housing and a sensing range of 3 mm, making it ideal for industrial automation and object detection. With an impressive switching frequency of 1,500 Hz and an IP67 rating for dust and water protection, this sensor is built for reliability in demanding environments. Perfect for manufacturing lines and safety systems, it ensures precise position sensing and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 6.5 mm
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Installation type: Flush
- Switching frequency: 1,500 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC
- Conductor size: 0.14 mm²
- Cable diameter: 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 16 mm
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,500 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring short sensing range
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-03BNSVW2G Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise object detection.
