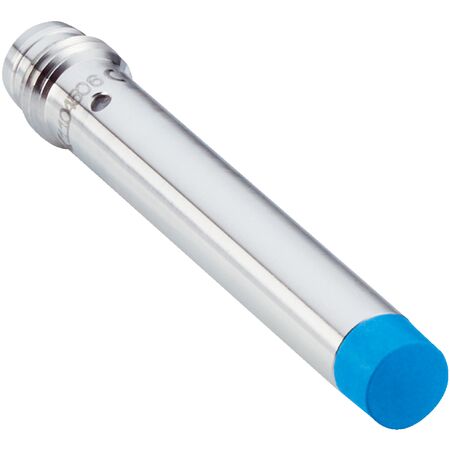

Inductive Proximity Sensor IHM06-04NNSVT0S | IP67 Rated | 4mm Sensing Range | 3500Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-04NNSVT0S is designed for precise object detection in industrial automation. With a robust stainless steel housing and an IP67 rating, it ensures reliable performance in harsh environments. Ideal for manufacturing lines and safety systems, this sensor features a 4mm sensing range and a high switching frequency of 3,500 Hz, making it perfect for non-contact switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 3,500 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC: EN 60947-5-2 compliant
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 50 mm
- MTTFD: 1,330 years
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Non-flush installation type with 4 mm sensing range
- High switching frequency of 3,500 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure safety and optimal performance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Compliant with China-RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-04NNSVT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
