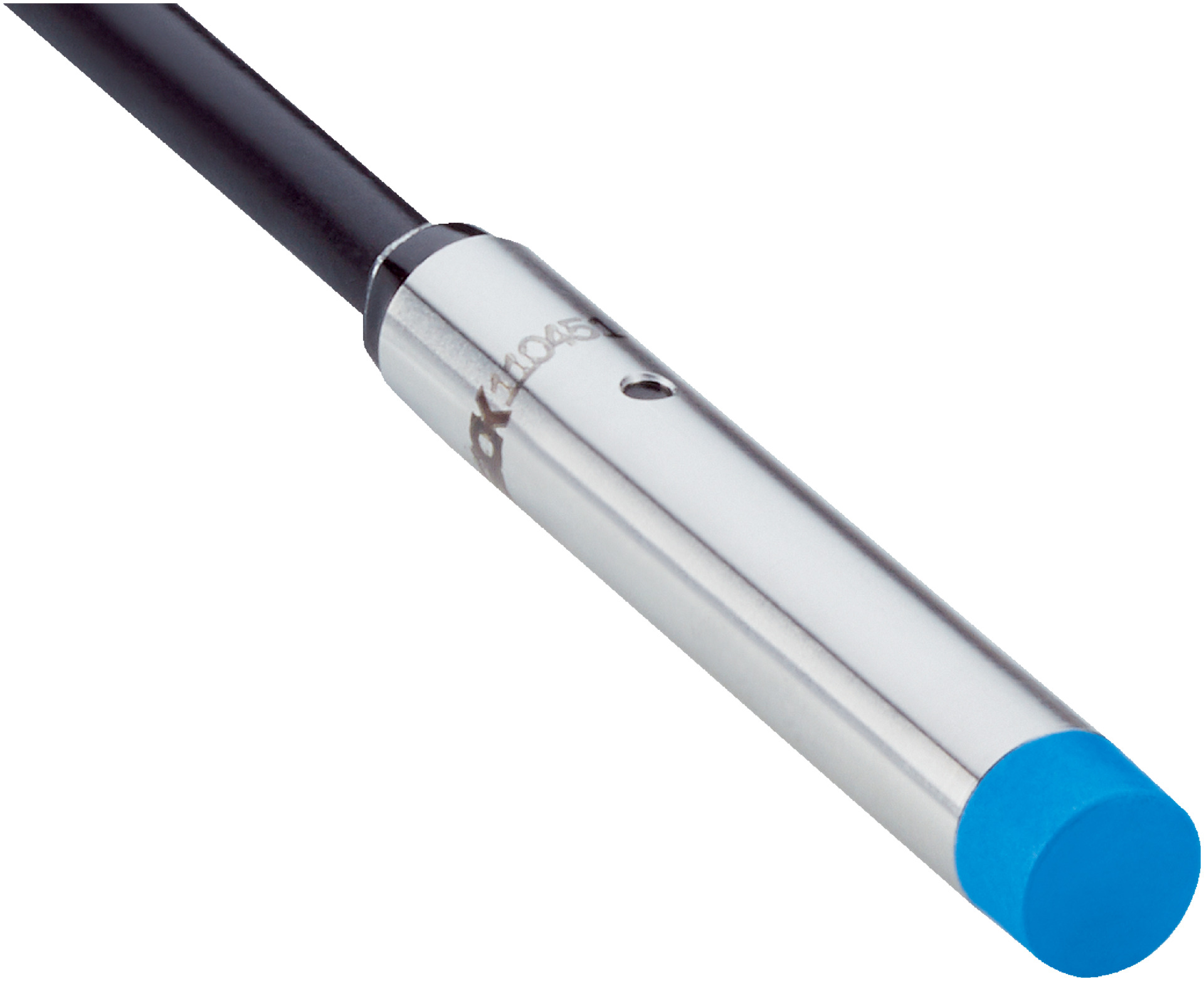

Inductive Proximity Sensor IHM06-04NNSVW2S | NPN Output | IP67 Rated | 4mm Sensing Range | by SICK
The Inductive Proximity Sensor IHM06-04NNSVW2S is designed for reliable object detection in industrial automation. With a high switching frequency of 3,500 Hz and an IP67 rated enclosure, it ensures durability and performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor features a stainless steel housing and a sensing range of 4 mm, making it perfect for non-flush mounting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally open (NO)
- Switching frequency: 3,500 Hz
- Connection type: 3-wire cable, 2 m length
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current: ≤ 200 mA
- Cable diameter: Ø 3.7 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Short-circuit and power-up pulse protection included
- MTTFD: 1,330 years
- Mission time: 20 years
- Dimensions (H x L x W): 6.5mm x 42.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 3,500 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- RoHS compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IHM06-04NNSVW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
