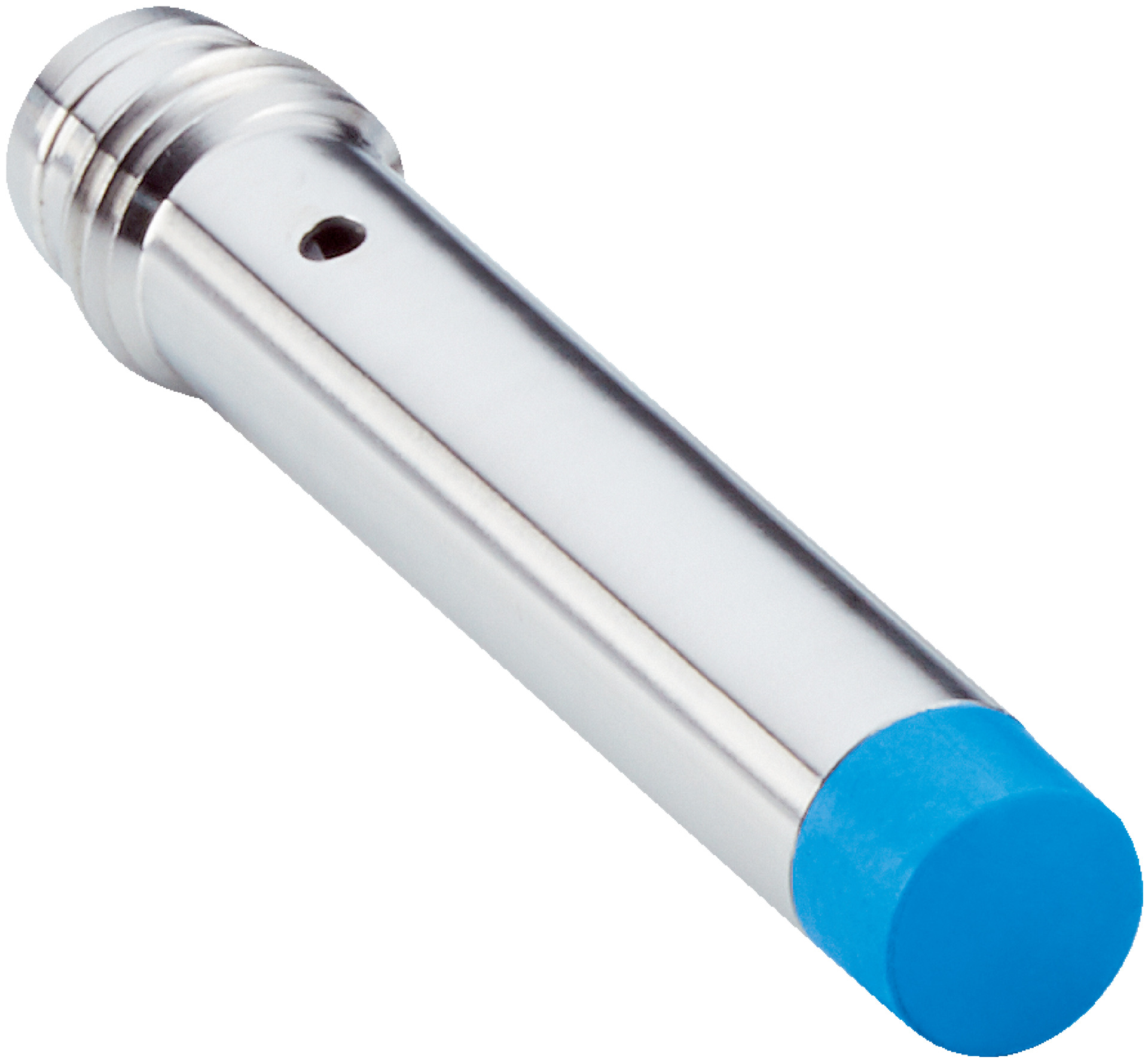

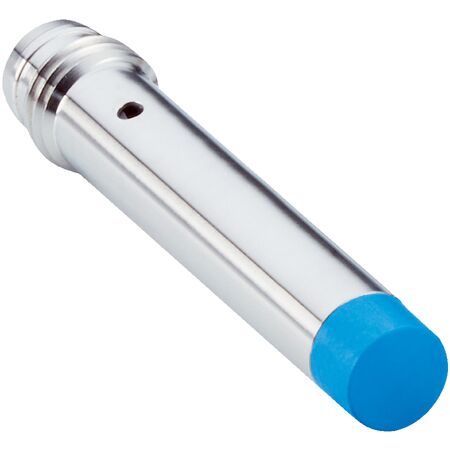

Inductive Proximity Sensor IHM06-06NNSVT0K | IP67 Rated | Short-Body Design | NPN Output | by SICK
The Inductive Proximity Sensor IHM06-06NNSVT0K is designed for reliable object detection in industrial automation. With a sensing range of 6 mm and an IP67 enclosure rating, it ensures durability in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor features a short-body design and NPN normally open output for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- EMC standard: EN 60947-5-2
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Switching output: NPN, normally open (NO)
- Connection type: Connector M8, 3-pin
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 6.5 mm diameter
- Non-flush installation type
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- Switching frequency of 1,000 Hz
- NPN switching output with normally open (NO) function
- Connector M8, 3-pin connection type
- Visual adjustment indicator and triple sensing range
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste through long product life
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-06NNSVT0K proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
