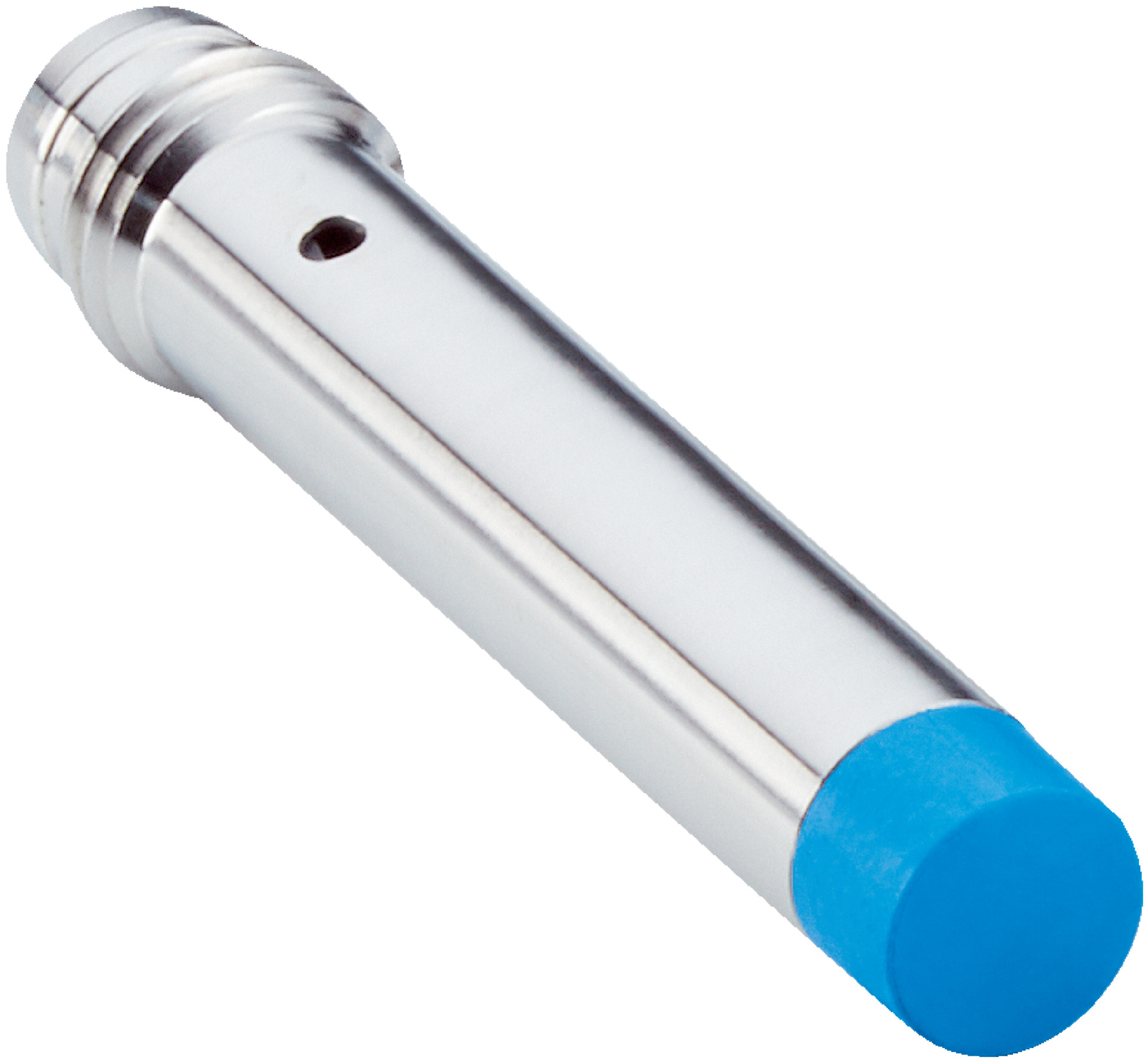

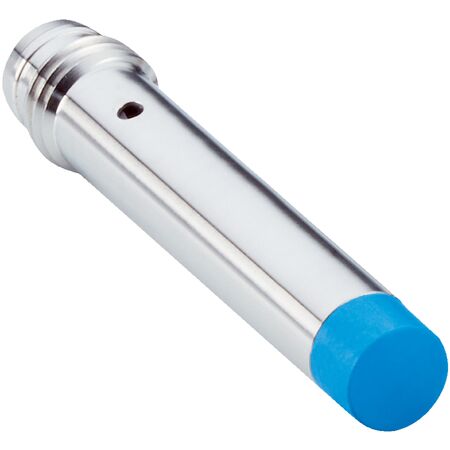

Inductive Proximity Sensor IHM06-06NPOVT0K | IP67 Rated | Short-Body Design | PNP Output | by SICK
The Inductive Proximity Sensor IHM06-06NPOVT0K is designed for precise object detection in industrial automation. With a short-body housing and an IP67 rating, it excels in non-flush mounting environments. This sensor features a high switching frequency of 1,000 Hz and a sensing range of 6 mm, making it ideal for manufacturing lines and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20 %
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1 % to 10 %
- Reproducibility: ≤ 2 %
- Temperature drift of sensing range: ≤ 10 %
- Continuous current Ia: ≤ 200 mA
- Switching output: PNP, NC function
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC standard: EN 60947-5-2
- MTTFD: 1,330 years
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with diameter Ø 6.5 mm
- Non-flush installation type
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- Connector M8, 3-pin connection type
- Visual adjustment indicator and triple sensing range
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting environments requiring short sensing range
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-06NPOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise non-flush object detection.
