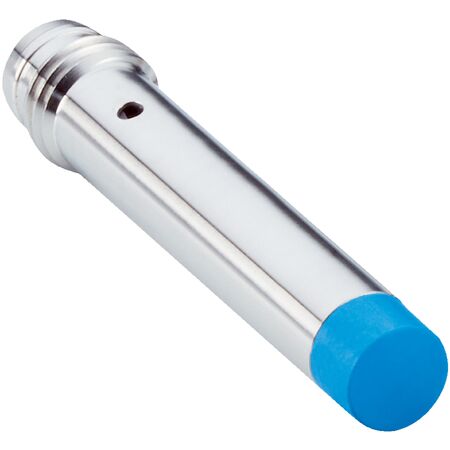

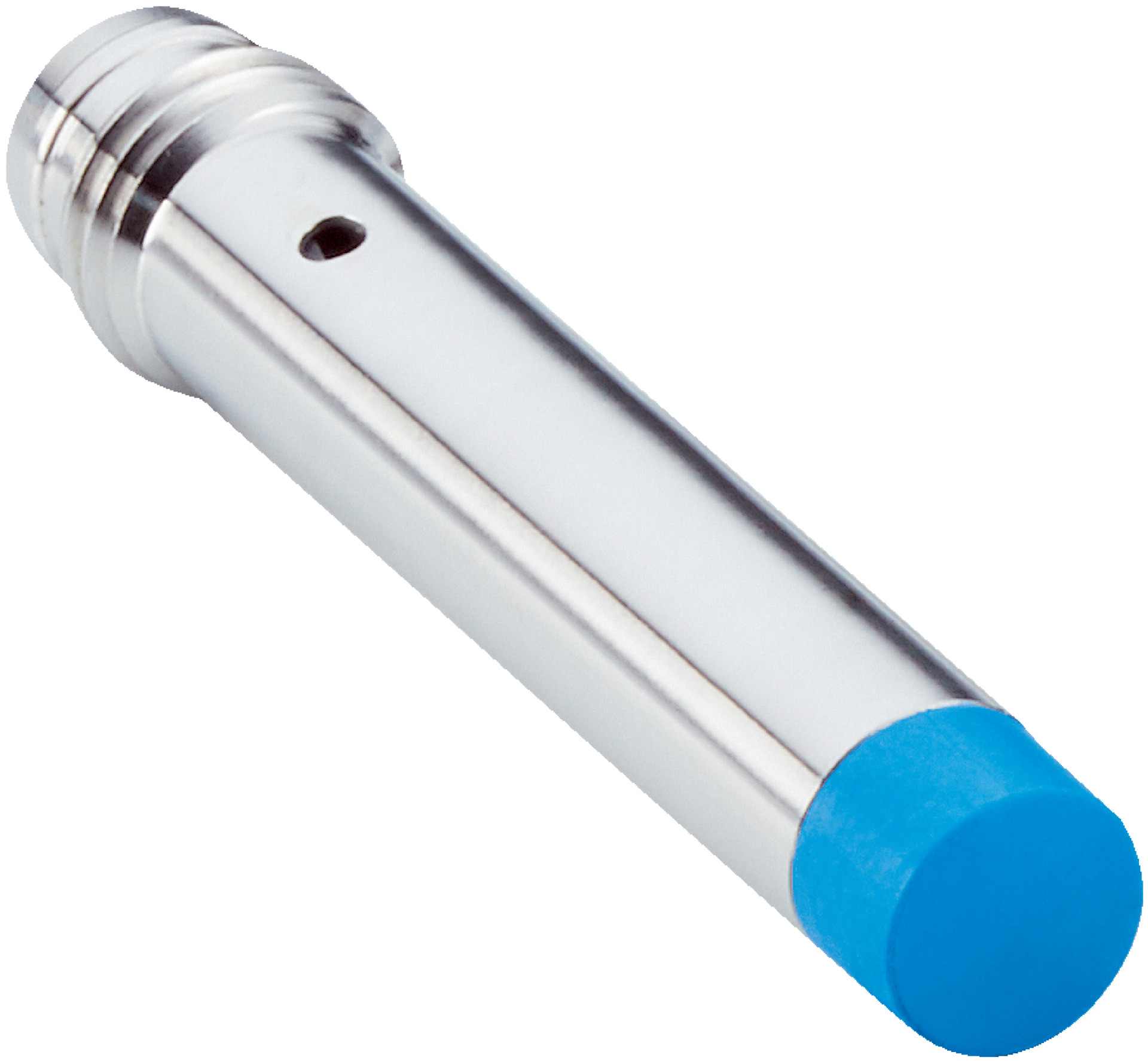

Inductive Proximity Sensor IHM06-06NPSVT0K | IP67 Rated | Short-Body Design | High Switching Frequency | by SICK
The IHM06-06NPSVT0K inductive proximity sensor is designed for industrial automation, featuring a short-body housing with a 6.5 mm diameter and an IP67 rating for dust and water protection. With a high switching frequency of 1,000 Hz and IO-Link communication, it ensures precise object detection and machine safety in various applications, making it ideal for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 6.5 mm diameter
- Non-flush installation type
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-06NPSVT0K proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
