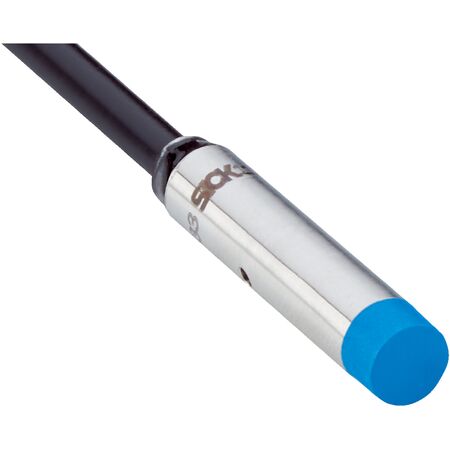

Inductive Proximity Sensor IHM06-06NPSVW2K | Short-Body Stainless Steel | IP67 Rated | 6mm Sensing Range | by SICK
The Inductive Proximity Sensor IHM06-06NPSVW2K features a short-body design with durable stainless steel housing, making it perfect for industrial automation and machine safety applications. With a sensing range of 6 mm and an IP67 rating for dust and water protection, this sensor ensures reliable performance in challenging environments. Ideal for robotics and conveyor systems, it offers high switching frequency and PNP output for efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 31.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-06NPSVW2K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
