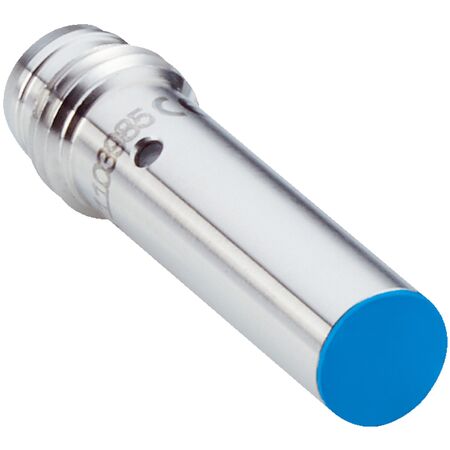

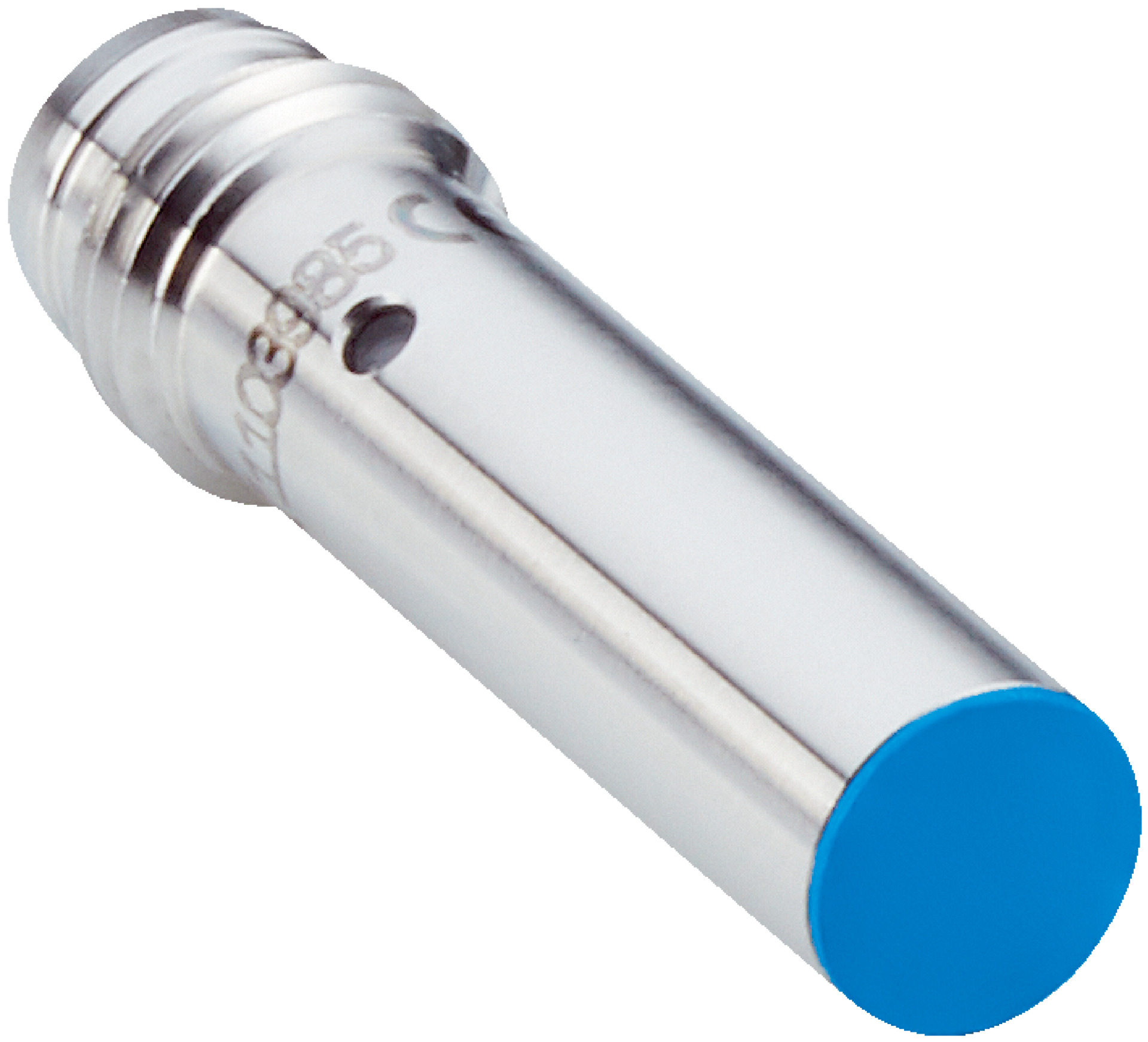

Inductive Proximity Sensor IHM06-1B5PSVT0G | 1.5mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-1B5PSVT0G is designed for precision in industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 5,000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for metal detection and position sensing in manufacturing lines, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Electrical wiring: DC 3-wire
- Switching output: PNP, normally open
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short housing model with 6.5 mm diameter
- Flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- Visual adjustment indicator and IO-Link communication
- IP67 rated enclosure for dust and water protection
- Stainless steel V2A housing for durability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper setup and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring compact sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-1B5PSVT0G inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
