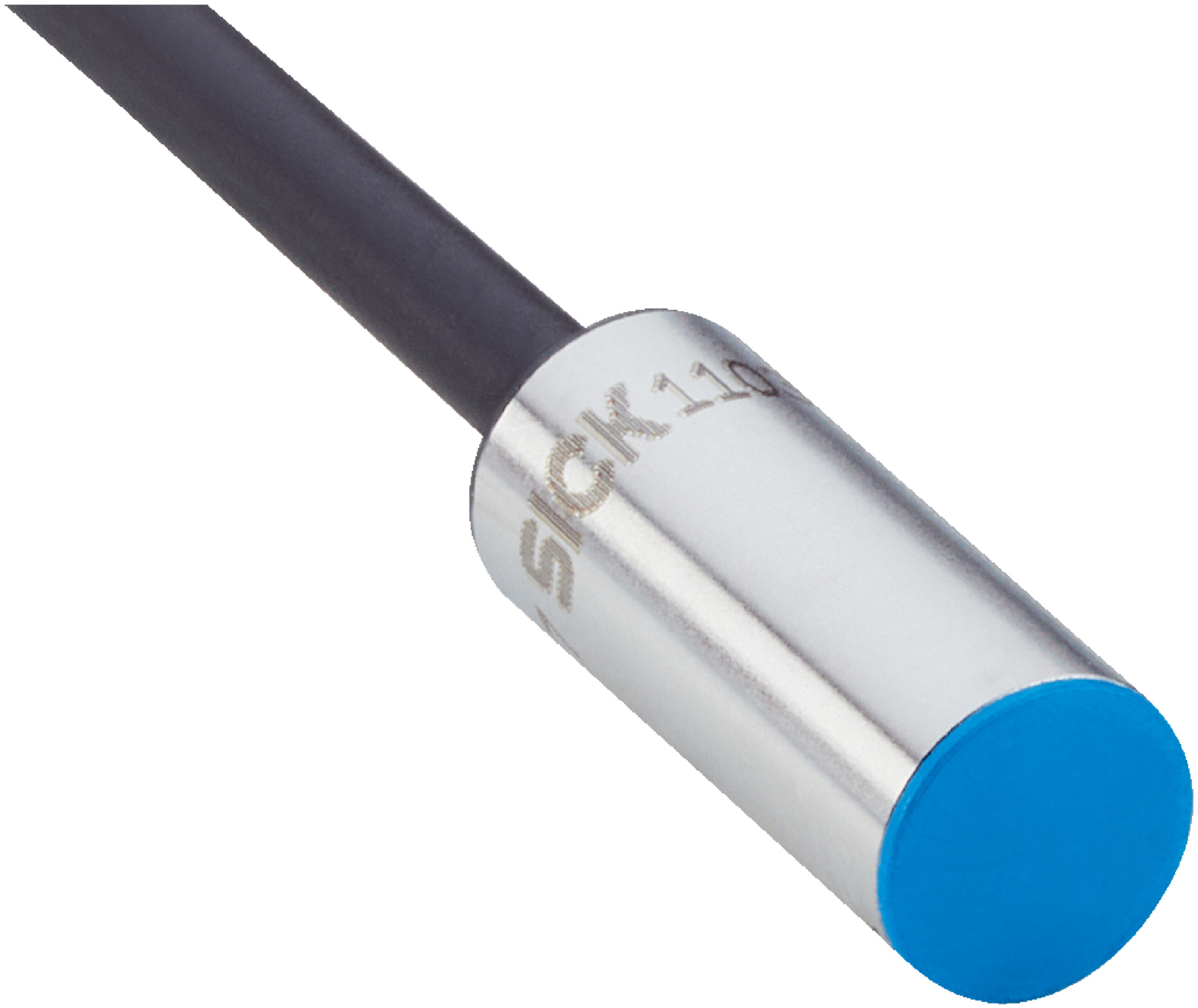

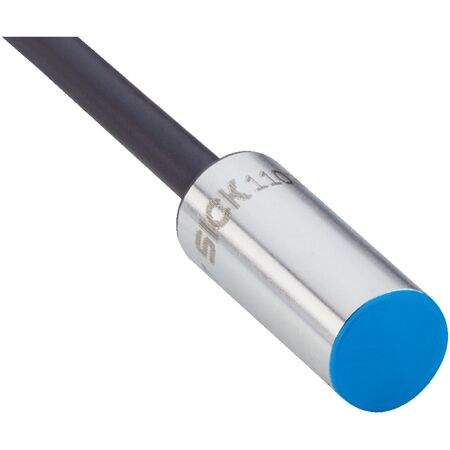

Inductive Proximity Sensor IHM06-1B5PSVW2G | 5,000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor IHM06-1B5PSVW2G is designed for precision in industrial automation, featuring a high switching frequency of 5,000 Hz and an IP67 rated enclosure for dust and water protection. Ideal for flush mounting in tight spaces, this sensor ensures reliable object detection and position sensing in machinery, making it a perfect choice for professionals seeking efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 6.5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, Normally Open (NO)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC, diameter 2.9 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- Visual adjustment indicator and IO-Link communication
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Flush mounting in tight spaces requiring short sensor length
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-1B5PSVW2G inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
