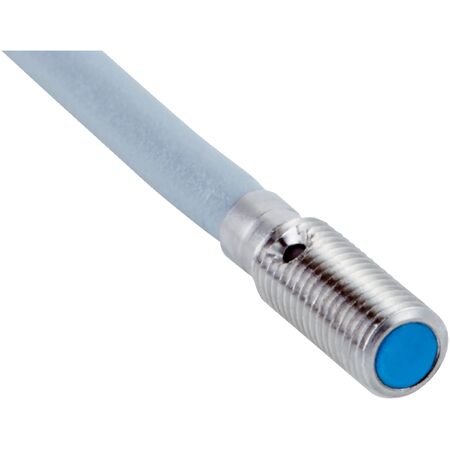

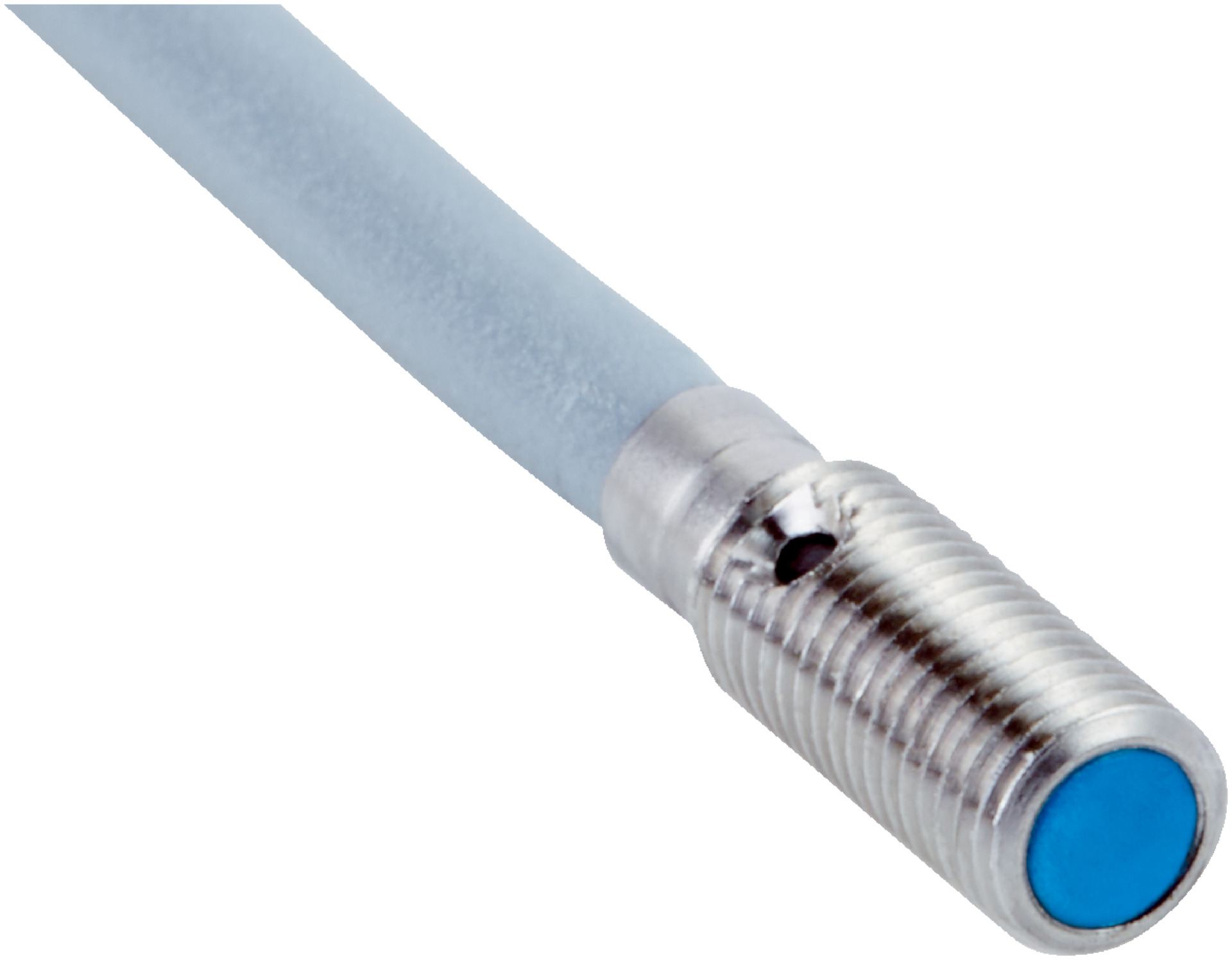

Inductive Proximity Sensor IM04-01BPSVR8K | IP67 Rated | Short-Body Metal Housing | High Switching Frequency 8000Hz | by SICK
The Inductive Proximity Sensor IM04-01BPSVR8K is designed for precision in industrial automation, featuring a high switching frequency of 8000Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 1 mm and a robust stainless steel housing, it's perfect for object detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.6 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing length: 12 mm, Thread length: 9 mm
- Tightening torque max: ≤ 0.8 Nm
- EMC compliant with EN 60947-5-2 and IEC 61000-4-2/4-4
- Switching output: PNP, normally open (NO)
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 21mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Flush installation type
- High switching frequency of 8,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin connector, 0.2 m length
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM04-01BPSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
