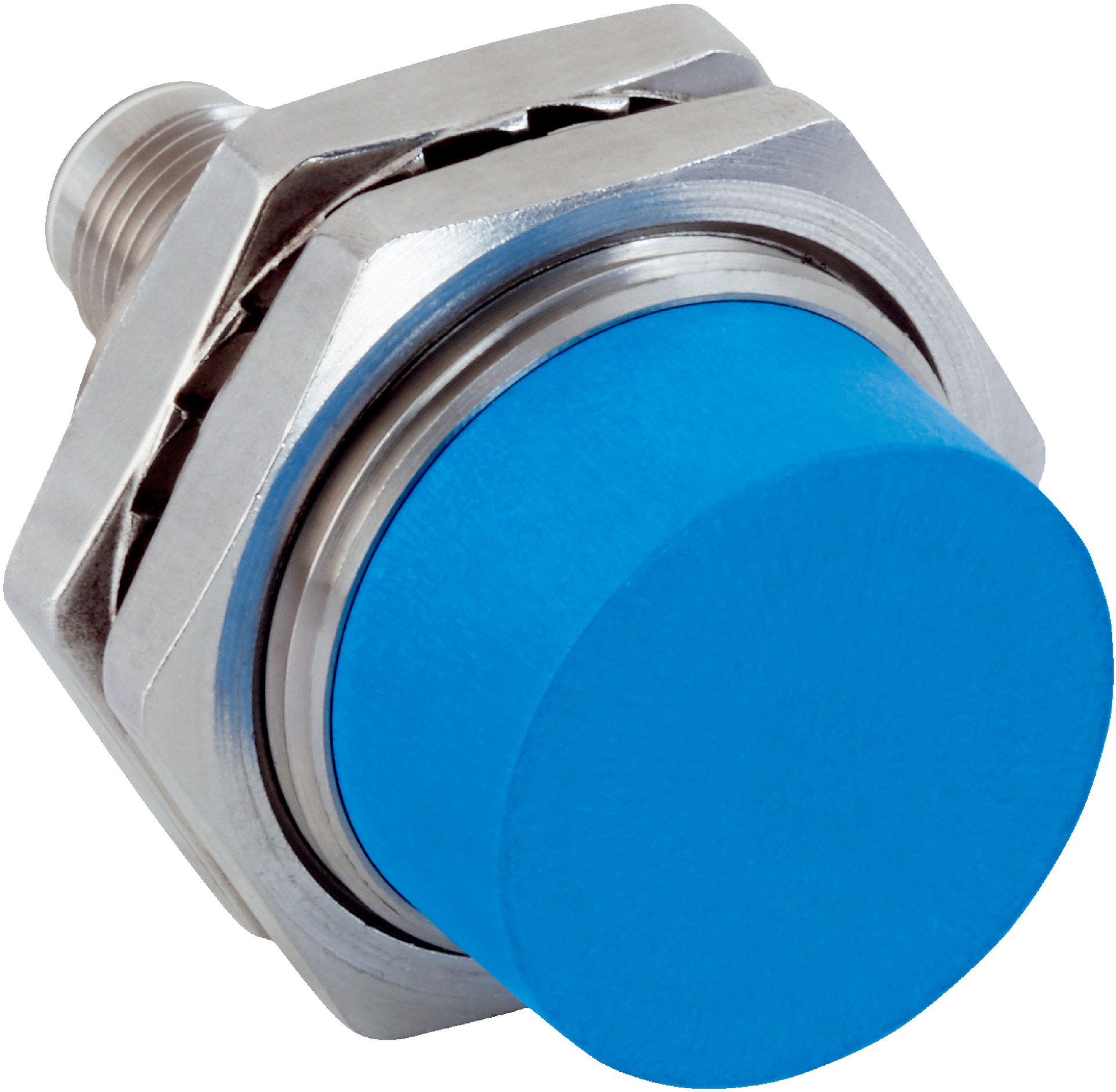

Inductive Proximity Sensor IMB30-20NNSVC0K | IP68 & IP69K Rated | NPN Normally Open Output | by SICK
Inductive proximity sensor IMB30-20NNSVC0K is designed for reliable object detection in industrial automation. With an IP68 and IP69K rating, it withstands harsh environments, making it ideal for mobile machines and areas with coolants. Featuring a sensing range of 20 mm and a robust stainless steel housing, this sensor ensures durability and high performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMB30-20NNSVC0K | IP68 & IP69K Rated | NPN Normally Open Output | by SICK
Brand: SICK
SKU: 1072854
Alternatively Known As: Inductive Proximity Sensor M30, IMB30 Sensor, NPN Proximity Switch, Short Body Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Housing length: 50 mm
- Thread length: 20 mm
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Male connector M12, 4-pin connection
- IP68 and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Operating temperature range from -40 °C to +100 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMB30-20NNSVC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
