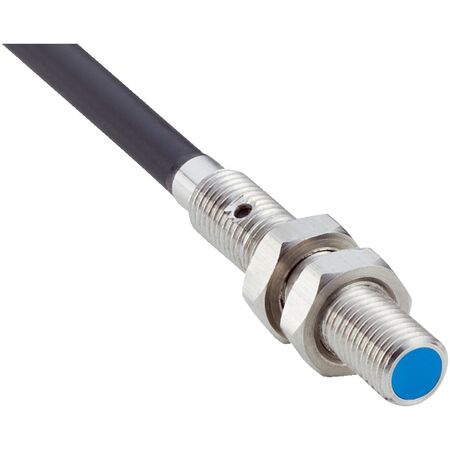

Inductive Proximity Sensor IMM04-01BNSVU2S | Stainless Steel | IP67 Rated | 1mm Sensing Range | by SICK
The Inductive Proximity Sensor IMM04-01BNSVU2S is designed for precision in industrial automation, featuring a robust stainless steel housing and a sensing range of 1 mm. With an impressive switching frequency of 4,200 Hz and an IP67 rating for dust and water protection, this sensor is perfect for applications in object detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4,200 Hz
- Connection type: Cable, 3-wire, 2 m PUR
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable diameter: Ø 2.5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing length: 22 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4,200 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Includes mounting nuts and washers made of V2A stainless steel
- Cable connection type with 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire operation
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM04-01BNSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact, flush-mounted sensors.
