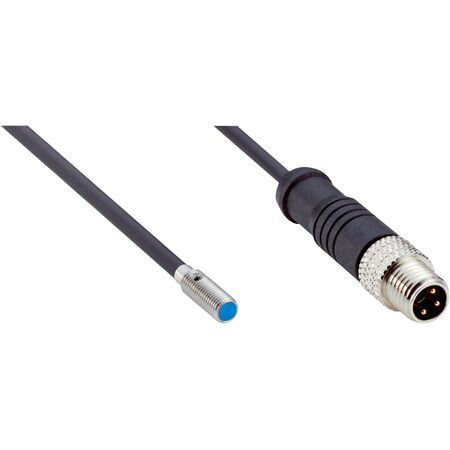

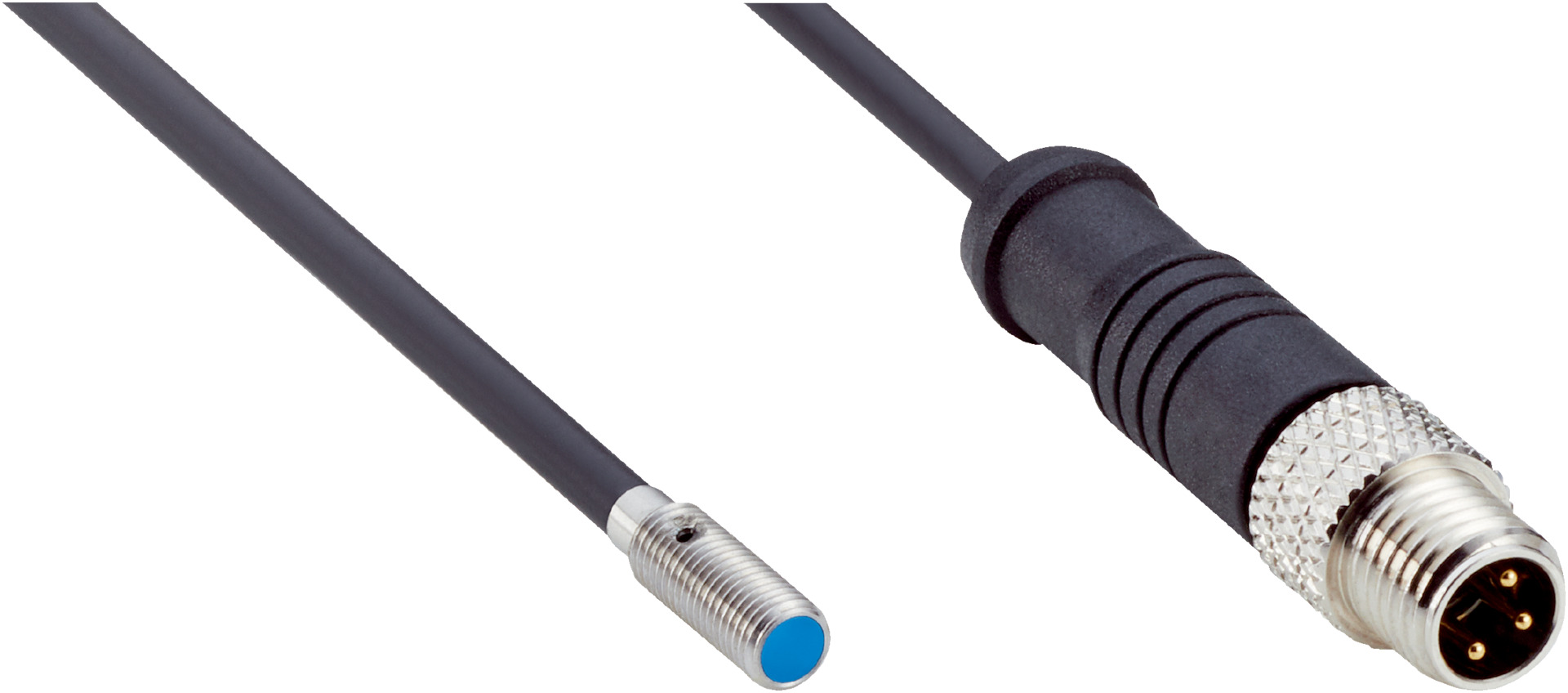

Inductive Proximity Sensor IMM04-01BPSVR8K | Short-Body Stainless Steel | IP67 Rated | 1mm Sensing Range | by SICK
The Inductive Proximity Sensor IMM04-01BPSVR8K is designed for precise object detection in industrial automation. With a short-body stainless steel housing and a sensing range of 1 mm, it ensures reliable performance in demanding environments. Ideal for flush installation, this sensor features a high switching frequency of 4200 Hz and an IP67 rating for dust and water protection, making it perfect for various applications in manufacturing and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4200 Hz
- Connection type: Cable with M8, 3-pin connector, 0.2 m length
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of Sr: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR
- Cable diameter: 2.5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 0.8 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 12mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Flush installation type
- High switching frequency of 4200 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin connector, 0.2 m length
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Automation systems requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-01BPSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
