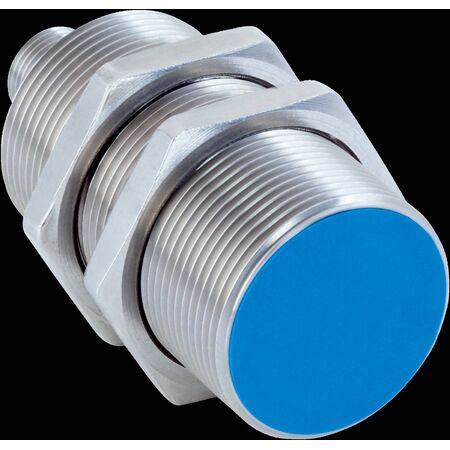

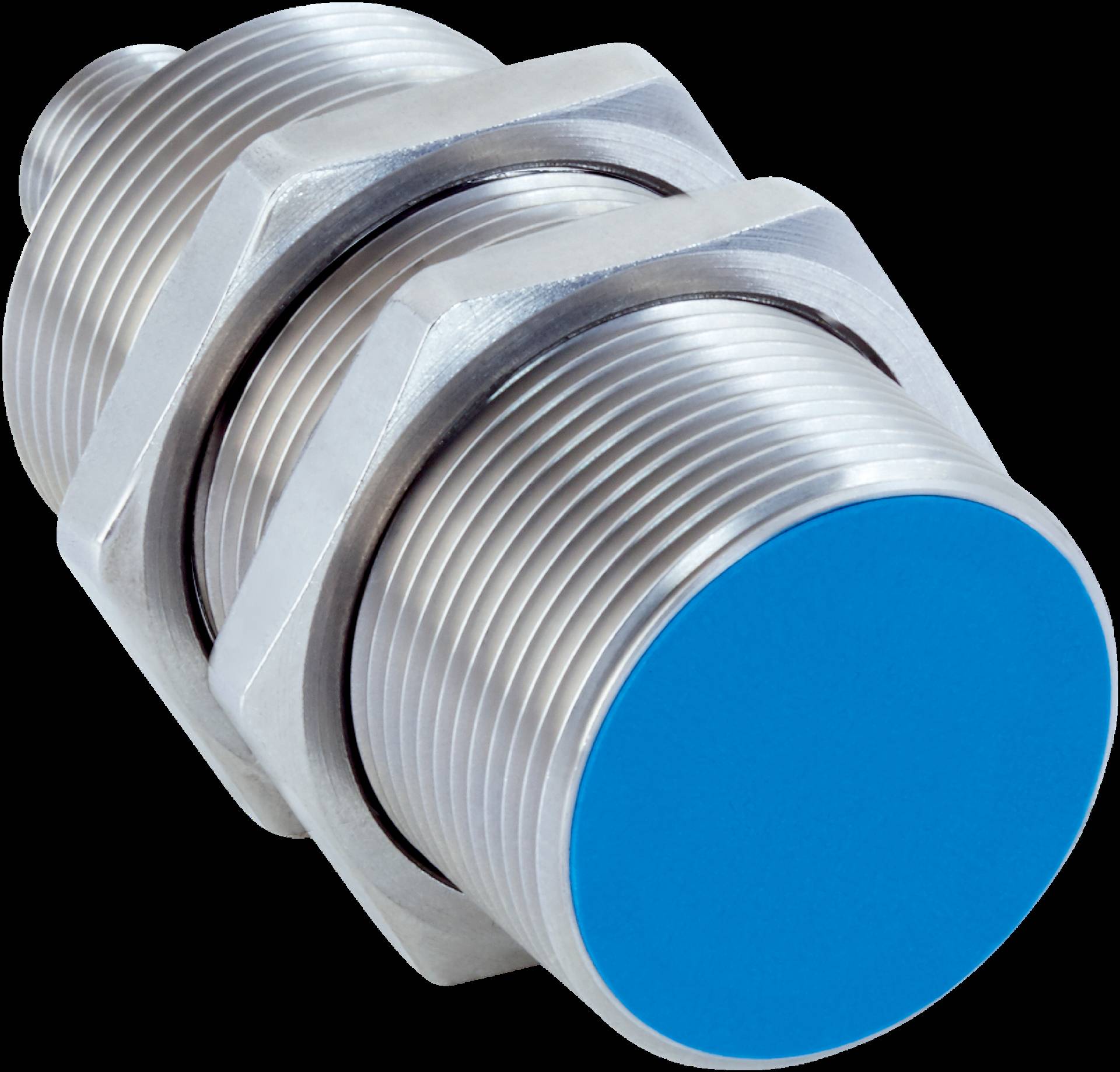

Inductive Proximity Sensor IMX | 25mm Sensing Range | IP68 Rated | PNP Output | by SICK
The Inductive Proximity Sensor IMX offers a 25mm sensing range and IP68 protection, making it ideal for industrial automation and metal detection in harsh environments. With a compact design and PNP normally open output, this sensor is perfect for space-critical installations and ensures reliable operation even in the presence of oils and cooling lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX | 25mm Sensing Range | IP68 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1107442
Alternatively Known As: Inductive Proximity Sensor IMX, Long Range Inductive Sensor, Industrial Proximity Sensor, Metal Detection Sensor
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 25 mm (quasi-flush installation)
- Switching output: PNP
- Output function: Normally Open (NO)
- Connection type: Male connector M12, 4-pin
- Housing length: 70.2 mm
- Thread length: 52.2 mm
- Enclosure rating: IP68
- Operating temperature range: –25 °C to +75 °C
- Housing material: Nickel-plated brass with plastic sensing face
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Four times the sensing range of conventional inductive sensors
- Sensing ranges up to 50 mm for enhanced process performance
- Compact design saves installation space in tight areas
- Rugged, durable nickel-plated brass housing with plastic sensing face
- IP68 rated enclosure for protection against dust and water
- Visual adjustment indicator for easy setup
- Resistant to oils and cooling lubricants
- Operating temperature range from –25 °C to +75 °C
- PNP switching output with normally open (NO) function
- Connection via male M12 4-pin connector
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct sensor setup and reliable operation in industrial environments.
Applications
- Industrial automation for detecting metal objects at greater distances
- Space-critical installations requiring compact sensor designs
- Harsh environments with exposure to oils and cooling lubricants
- Process control requiring high plant availability and stable operation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces downtime and waste from frequent replacements
- Energy-efficient sensing reduces power consumption in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMX Inductive Proximity Sensor is available for immediate purchase, ideal for industrial detection applications requiring long sensing ranges and robust performance.
