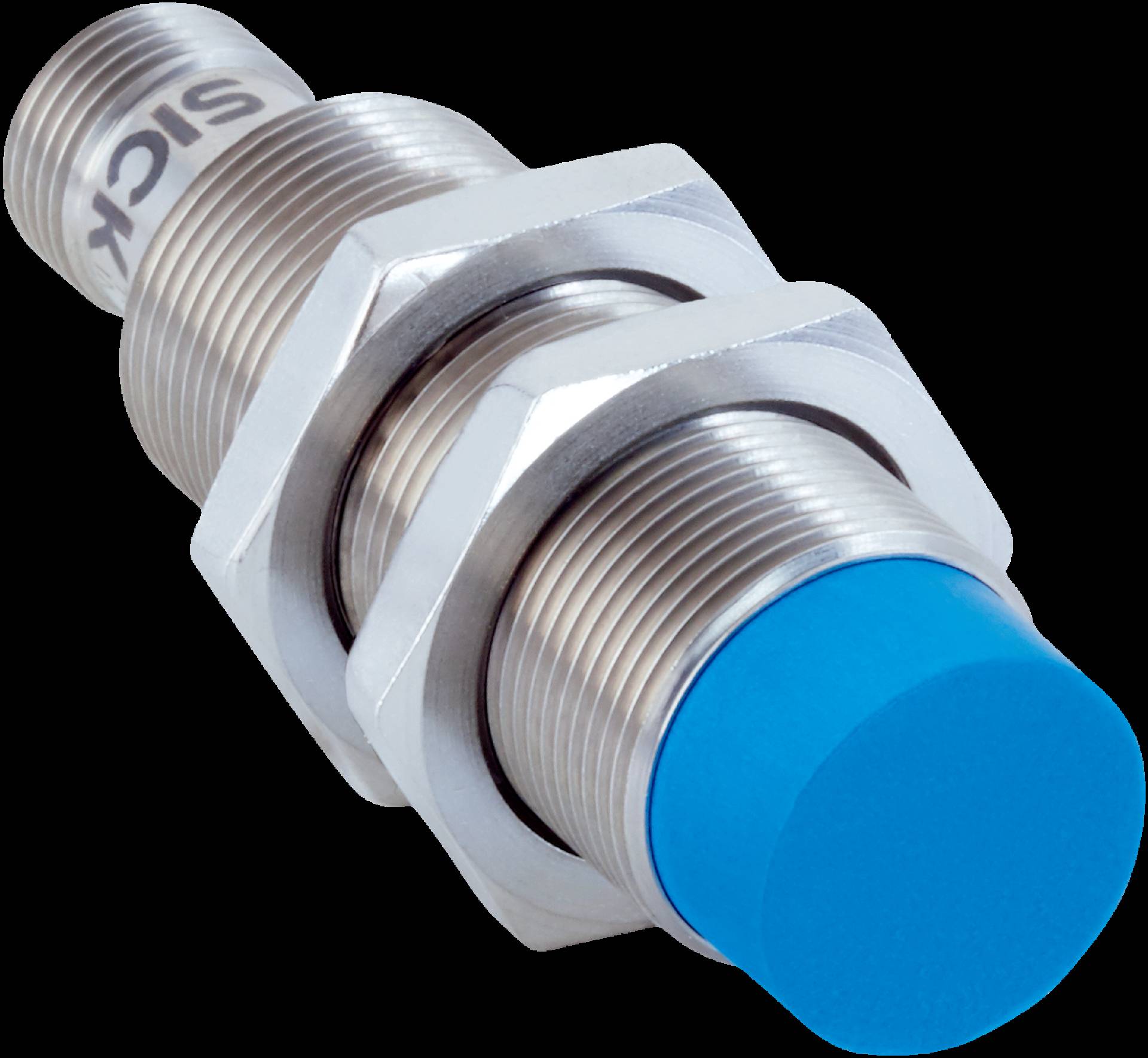

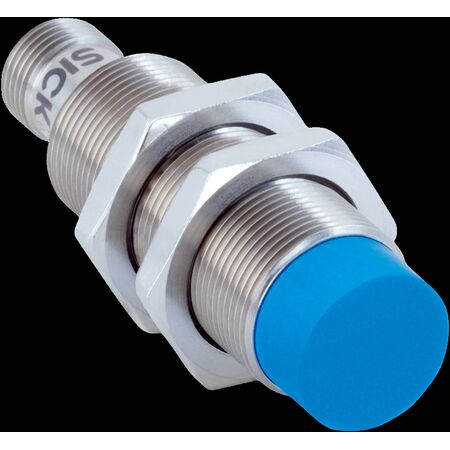

Inductive Proximity Sensor IMX | 30mm Sensing Range | IP68 Rated | by SICK
The IMX Inductive Proximity Sensor is designed for industrial automation, featuring a 30mm sensing range and an IP68 rated enclosure for dust and water resistance. Ideal for detecting metal objects in harsh environments, this sensor offers a rugged nickel-plated brass housing and is resistant to oils and cooling lubricants, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX | 30mm Sensing Range | IP68 Rated | by SICK
Brand: SICK
SKU: 1134196
Alternatively Known As: Inductive Proximity Sensor, IMX Proximity Sensor, Long Range Inductive Sensor, Industrial Proximity Sensor
Technical Specifications
- Thread size: M18 x 1
- Sensing range Sn: 30 mm
- Installation type: Non-flush
- Switching output: NPN
- Output function: Normally Closed (NC)
- Connection type: Male connector M12, 4-pin
- Housing length: 69 mm
- Thread length: 43 mm
- Enclosure rating: IP68
- Temperature range: –25 °C to +75 °C
- Material: Nickel-plated brass housing with plastic sensing face
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Four times the sensing range of conventional inductive sensors
- Sensing ranges from 4 mm up to 50 mm
- Rugged nickel-plated brass housing with plastic sensing face
- IP68 rated enclosure for dust and water resistance
- Visual adjustment indicator for easy setup
- Resistant to oils and cooling lubricants
- Temperature range from –25 °C to +75 °C
- Non-flush installation type with M18 x 1 thread size
- NPN switching output with normally closed (NC) function
- Male connector M12, 4-pin connection type
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct sensor setup and optimal performance.
Applications
- Industrial automation for detecting metal objects at greater distances
- Space-critical installations requiring compact sensor designs
- Harsh environments with exposure to oils and cooling lubricants
- Non-flush mounting applications in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces downtime and waste from sensor replacements
- Energy-efficient sensing reduces power consumption in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMX Inductive Proximity Sensor is available for immediate purchase, ideal for industrial detection applications requiring extended sensing ranges.
