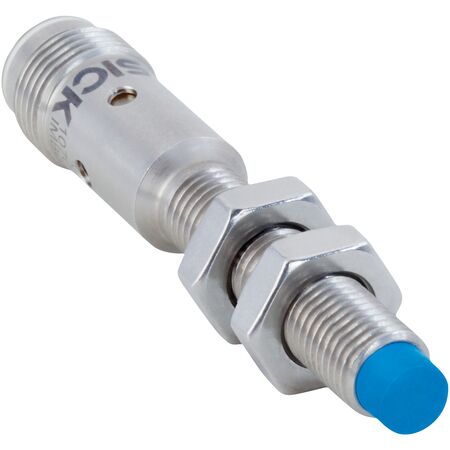

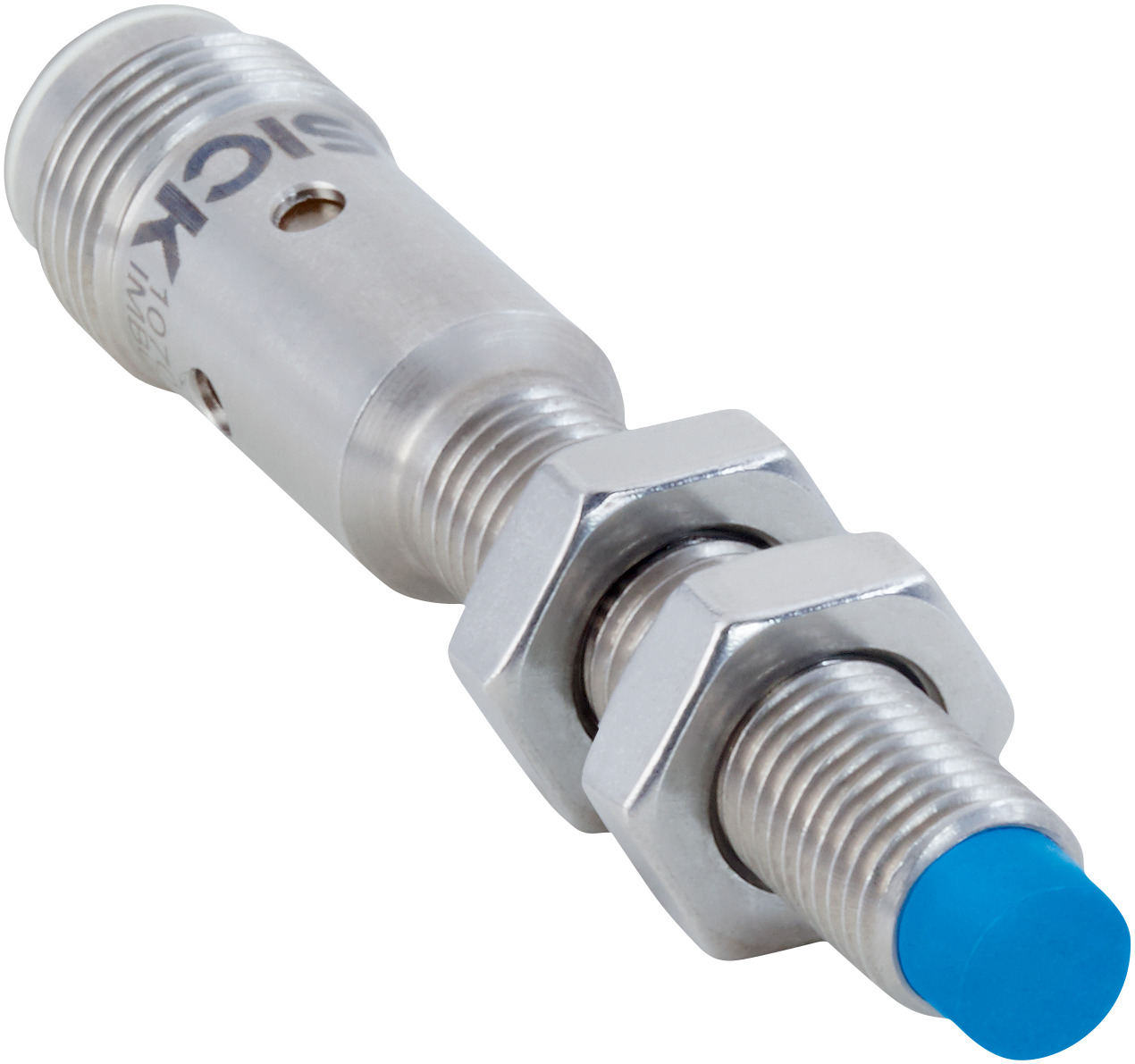

Inductive Proximity Sensor IMX08-08NNSZC0S | IP68 Rated | 8mm Sensing Range | NPN NO Output | by SICK
The Inductive Proximity Sensor IMX08-08NNSZC0S is designed for reliable object detection in industrial automation. With an 8mm sensing range and IP68 rated housing, it excels in environments with coolants and lubricants. This sensor features a non-flush installation type and NPN normally open output, making it ideal for various applications where durability and precision are essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX08-08NNSZC0S | IP68 Rated | 8mm Sensing Range | NPN NO Output | by SICK
Brand: SICK
SKU: 1134178
Alternatively Known As: Inductive Proximity Sensor M8, IMX08 Sensor, Non-flush Proximity Sensor, NPN NO Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Protection class: III
- Connection type: Male connector M12, 4-pin
- Switching output: NPN normally open (NO)
- Display LEDs: Yellow for output state, Green for stable on/off state
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Thread length: 28.2 mm
- Tightening torque max: ≤ 4 Nm
- Service interface: IO-Link (SICK Service only)
- Dimensions (H x L x W): 8mm x 67mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency of 25 Hz
- NPN normally open (NO) switching output
- DC 3-wire electrical wiring
- IP68 rated enclosure for high protection
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Resistant to coolant lubricants extends sensor lifespan
- Low power consumption with DC 3-wire wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMX08-08NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
