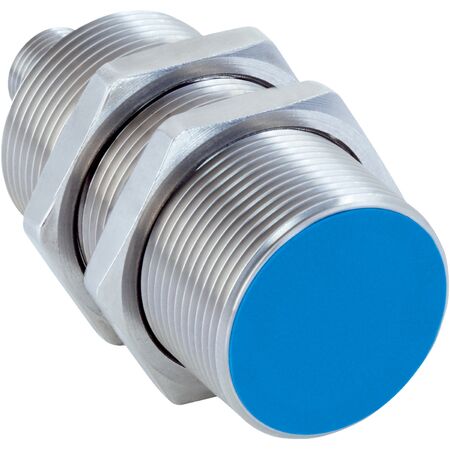

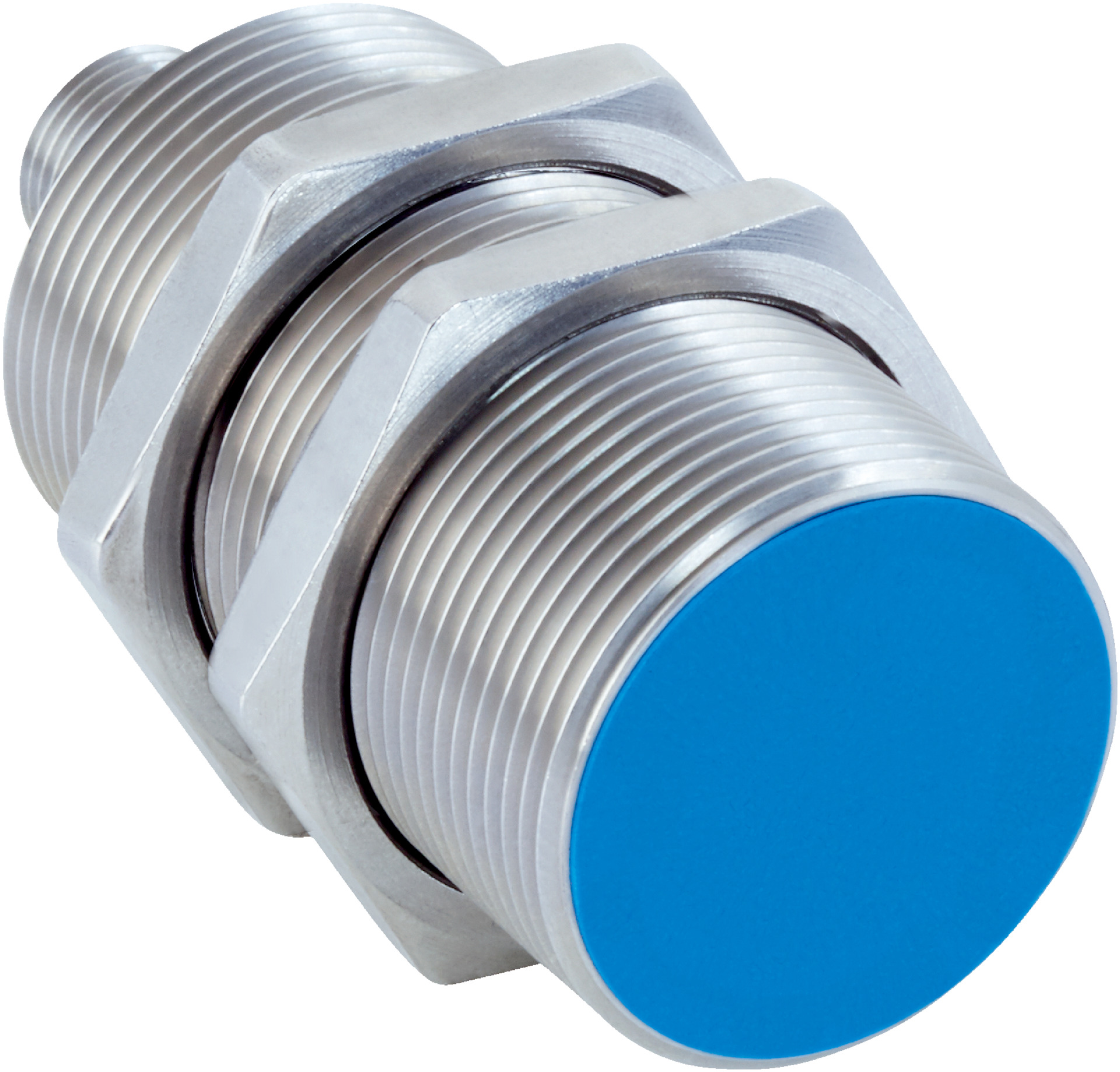

Inductive Proximity Sensor IMX30-25BNOZC0S | 25mm Sensing Range | IP68 Rated | NPN Output | by SICK
The Inductive Proximity Sensor IMX30-25BNOZC0S features a 25mm sensing range and IP68 rated enclosure, making it perfect for industrial automation and machine safety applications. Designed for environments with coolants and lubricants, this sensor ensures reliable performance with a normally closed NPN output and a robust nickel-plated brass housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX30-25BNOZC0S | 25mm Sensing Range | IP68 Rated | NPN Output | by SICK
Brand: SICK
SKU: 1134197
Alternatively Known As: Inductive Proximity Sensor M30, IMX30 Proximity Sensor, NPN Inductive Sensor, Quasi-flush Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Switching frequency: 25 Hz
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.3 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 25 mm with safe sensing range of 20.25 mm
- Quasi-flush installation type
- Switching frequency of 25 Hz
- NPN switching output with NC function
- DC 3-wire electrical wiring
- IP68 rated enclosure for protection against dust and water
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Resistant to coolants and lubricants minimizing sensor replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMX30-25BNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
