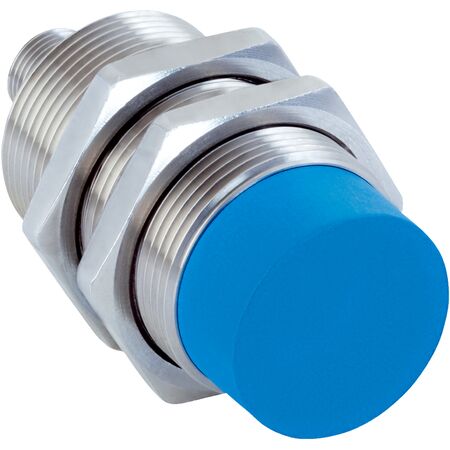

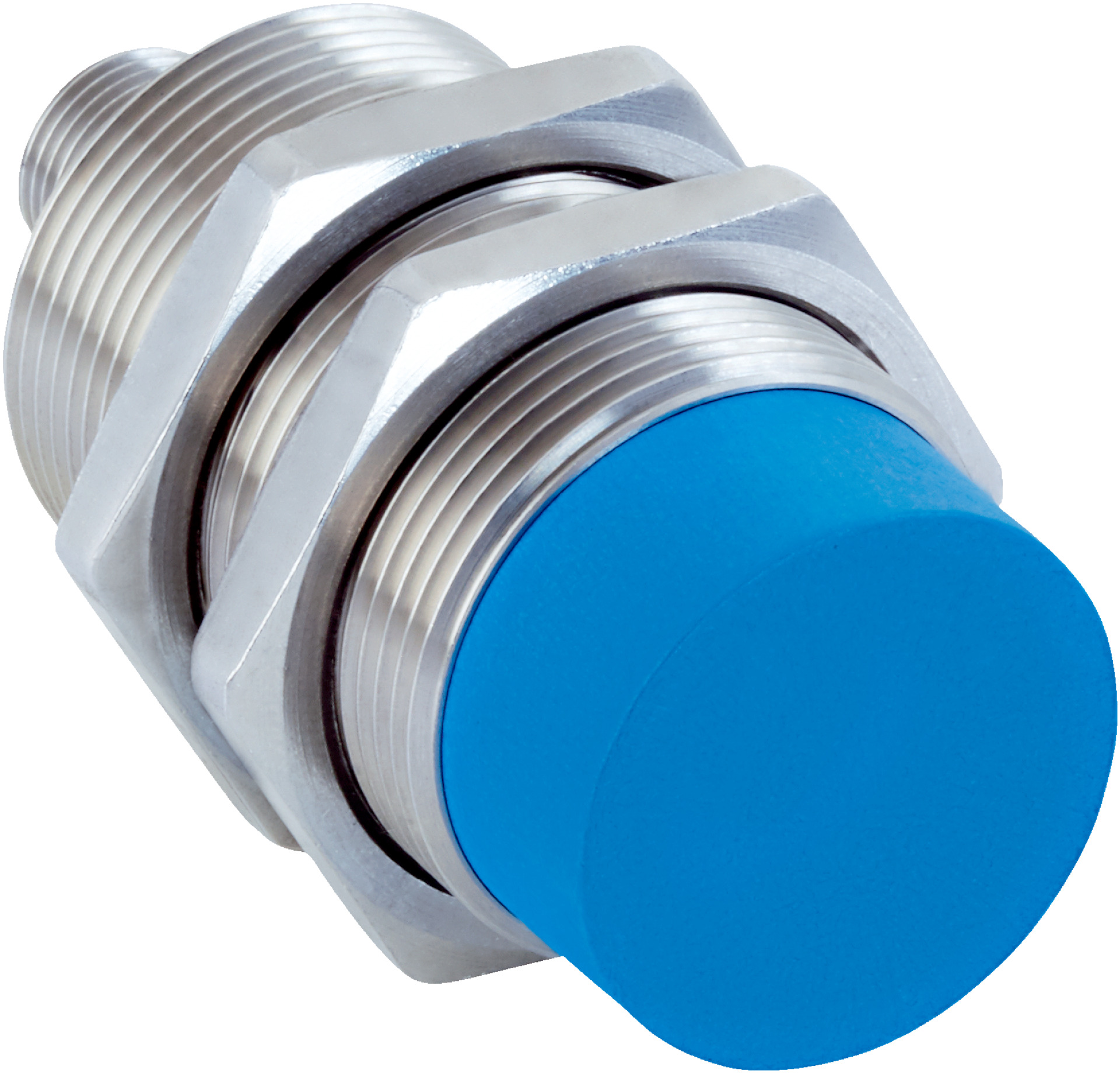

Inductive Proximity Sensor IMX30-50NNSZC0S | IP68 Rated | NPN Normally Open Output | 50mm Sensing Range | by SICK
Inductive proximity sensor IMX30-50NNSZC0S offers a robust solution for industrial automation with a sensing range of 50 mm and an IP68 rated enclosure for dust and water protection. Designed for non-flush mounting applications, it features a reliable NPN normally open output and is resistant to harsh environments, making it ideal for object detection in zones with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX30-50NNSZC0S | IP68 Rated | NPN Normally Open Output | 50mm Sensing Range | by SICK
Brand: SICK
SKU: 1134184
Alternatively Known As: Inductive Proximity Sensor M30, IMX30 Sensor, NPN Proximity Sensor, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: NPN, normally open
- Switching frequency: 10 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 150 ms
- Protection class: III
- Enclosure rating: IP68
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Connection type: Male connector M12, 4-pin
- Display: Yellow LED for output state, Green LED for stable on/off state
- Service interface: IO-Link (SICK Service only)
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.3 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 50 mm with safe sensing range of 40.5 mm
- Non-flush installation type
- Switching frequency of 10 Hz with NPN normally open output
- IP68 rated enclosure for protection against dust and water
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments, minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMX30-50NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications in harsh environments.
