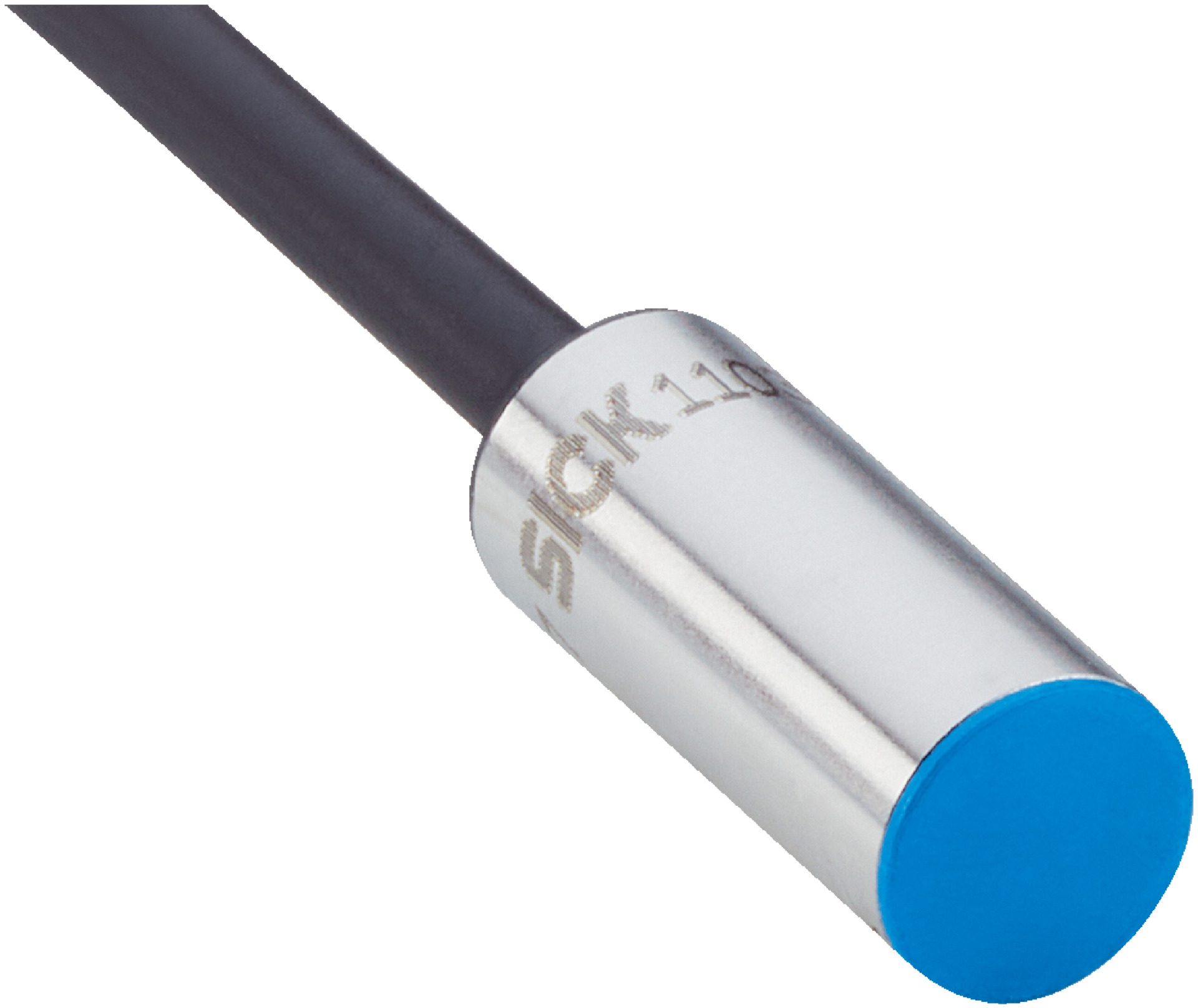

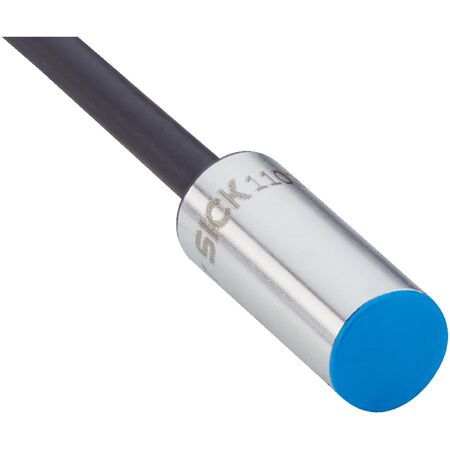

Inductive Proximity Sensor IHM06-1B5PSVU2G | IP67 Rated | 1.5mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-1B5PSVU2G is designed for precision in industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 5,000 Hz. With its IP67 rated enclosure, this sensor is perfect for flush installations in harsh environments, ensuring reliable metal detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Extremely short model, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 2.9 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- Visual adjustment indicator and IO-Link communication interface
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-1B5PSVU2G inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
