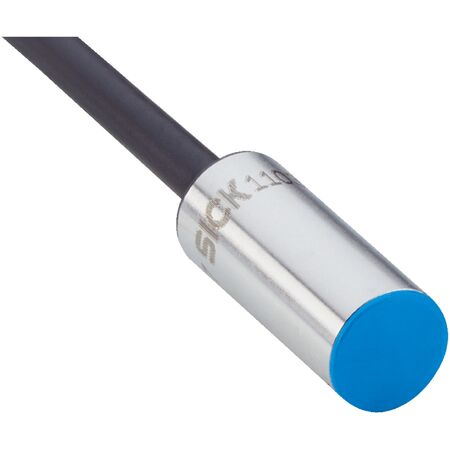

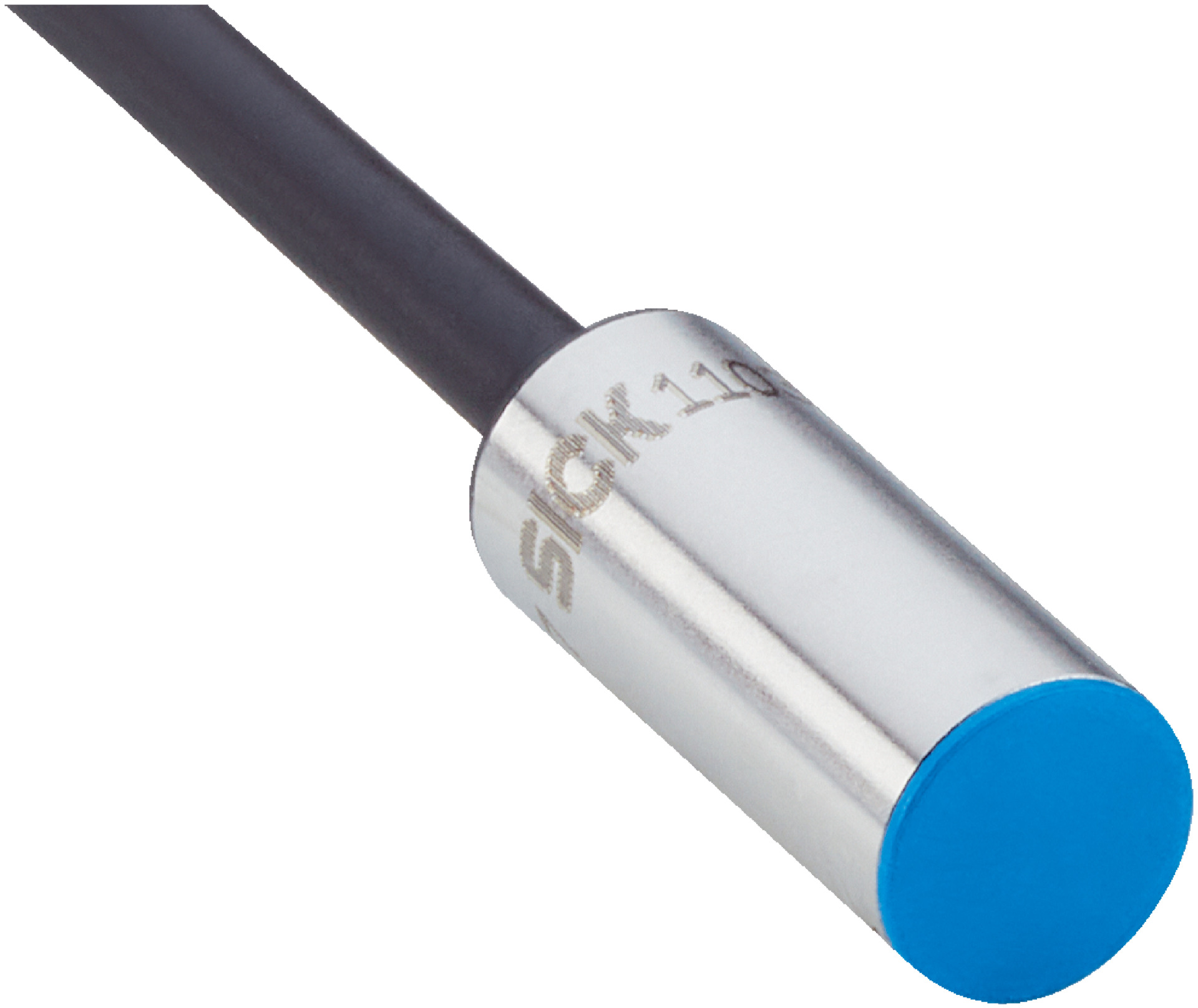

Inductive Proximity Sensor | IP67 Rated | 1,500 Hz Switching Frequency | Flush Mount Design | by SICK
The Inductive Proximity Sensor IHM06-03BPSVW2G is designed for precision in industrial automation, featuring a high switching frequency of 1,500 Hz and an IP67 rated enclosure for dust and water protection. Ideal for metal detection and position sensing in manufacturing lines, this sensor ensures reliable performance with a sensing range of 3 mm and a durable stainless steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,500 Hz
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Operating temperature range: -25 °C to +70 °C
- Cable diameter: 2.9 mm, PVC material
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,500 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range for versatile applications
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-03BPSVW2G inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
