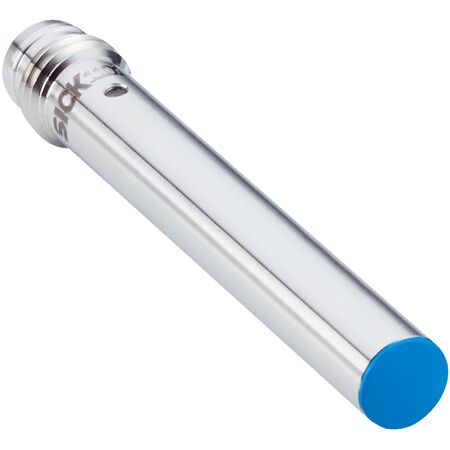

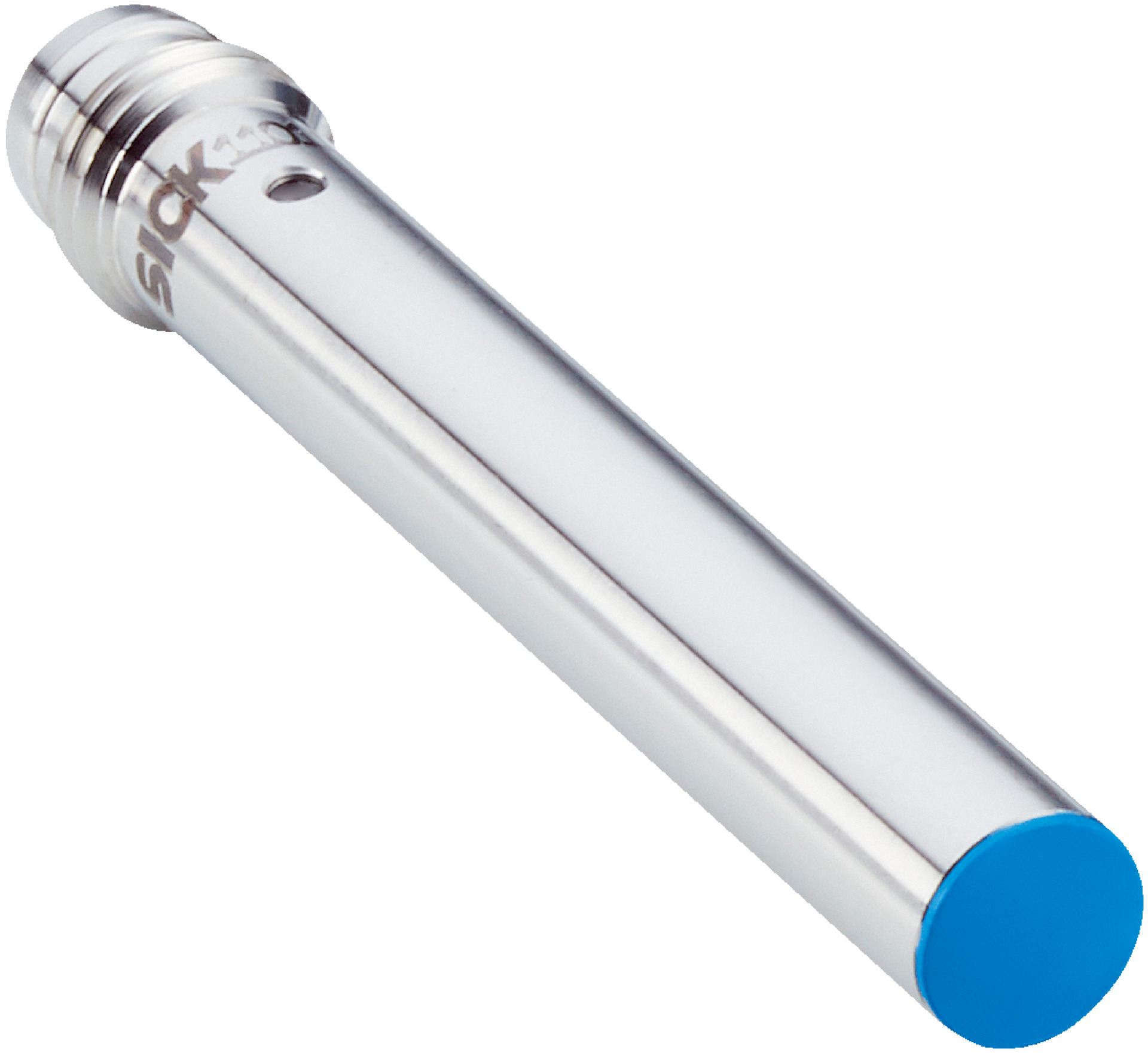

Inductive Proximity Sensor | IP67 Rated | 1,500 Hz Switching Frequency | PNP Output | by SICK
The Inductive Proximity Sensor IHM06-03BPSVT0S is designed for reliable object detection in industrial automation. With an IP67 rating for dust and water protection, a high switching frequency of 1,500 Hz, and a PNP normally open output, it’s perfect for machine safety and control systems. Built with durable stainless steel housing, this sensor ensures longevity and efficiency in various applications, including robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,500 Hz
- Switching output: PNP, normally open
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 6.5 mm diameter sensing face
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,500 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Triple sensing range capability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and secure electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-03BPSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
