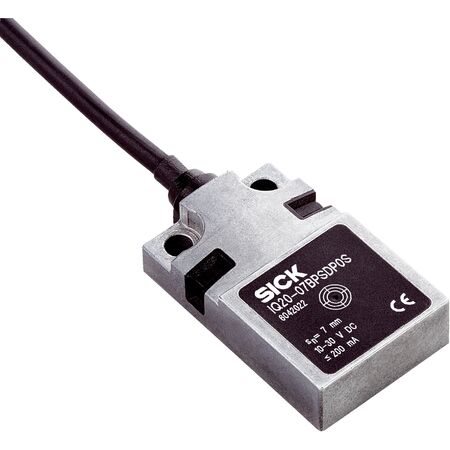

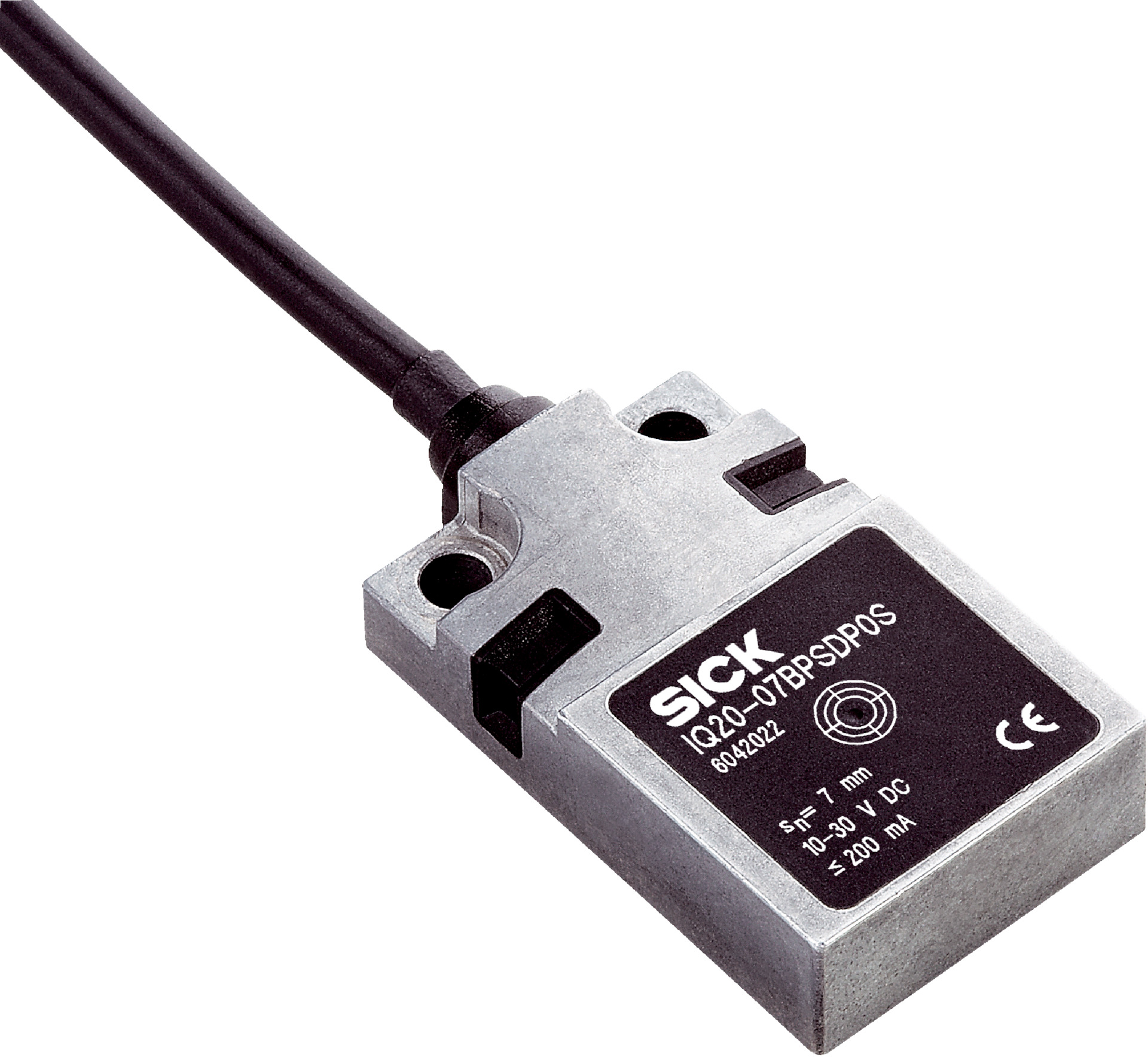

Inductive Proximity Sensor | IP67 Rated | 150 Hz Switching Frequency | Flush Mount Design | by SICK
The Inductive Proximity Sensor IQ20-07BPPDU5S is designed for reliable object detection in industrial automation. With a high switching frequency of 150 Hz and an IP67 rated enclosure, it ensures optimal performance in harsh environments. Ideal for metal detection and position sensing, this sensor features a durable zinc diecast housing and a sensing range of 7 mm, making it perfect for manufacturing lines and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 150 Hz
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Voltage drop: < 2.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable length: 5 m PUR cable
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing material: Zinc diecast (GD Zn)
- Sensing face material: Plastic PA12
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 32mm x 8mm x 20mm
- Weight: 0.1 kg
Key Features
- Rectangular zinc diecast housing with plastic sensing face
- Flush installation type for seamless integration
- Sensing range of 7 mm with safe sensing range of 5.67 mm
- High switching frequency of 150 Hz
- PNP complementary switching output
- Cable connection with 4-wire, 5 m PUR cable
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ20-07BPPDU5S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
