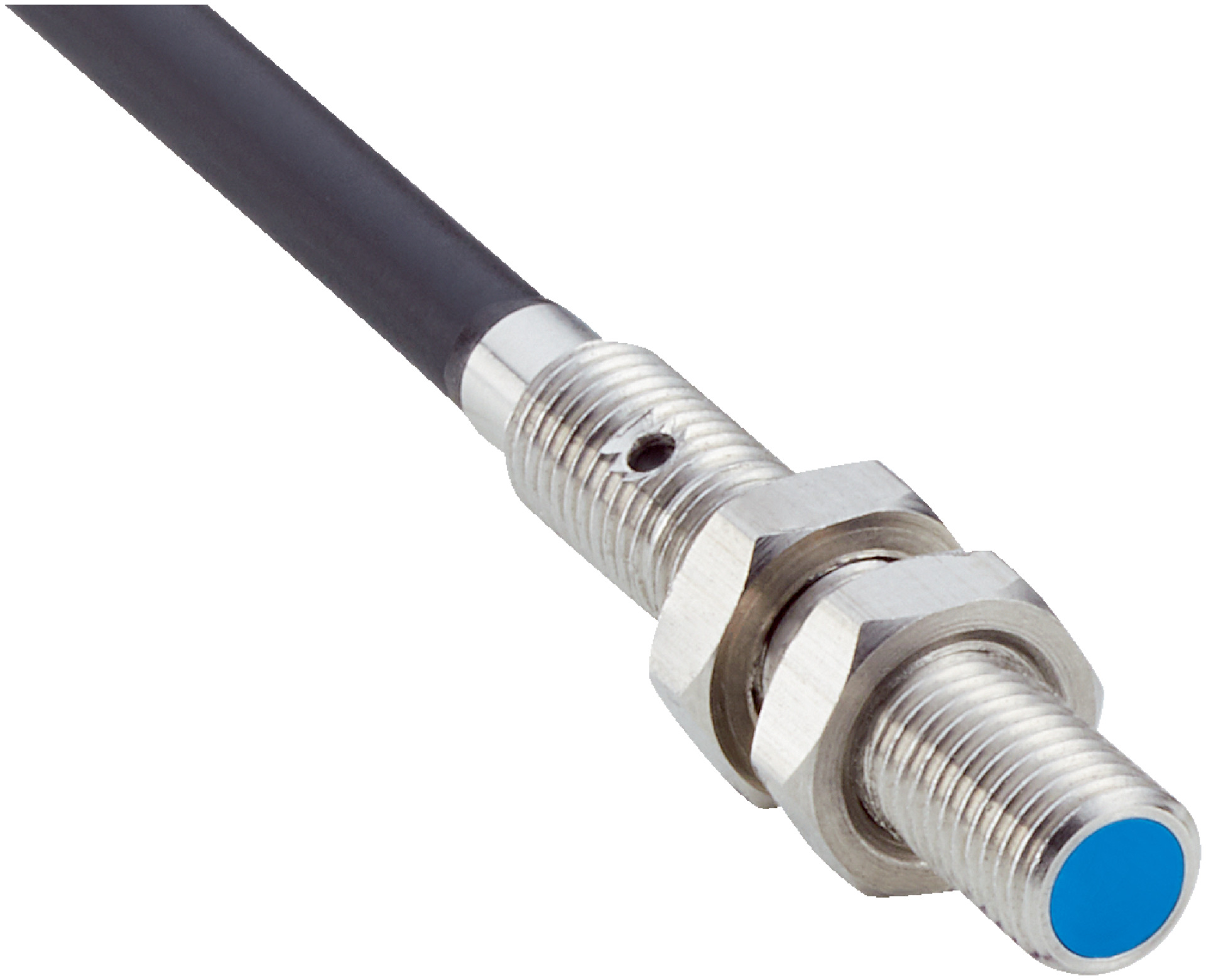

Inductive Proximity Sensor | IP67 Rated | 4200 Hz Switching Frequency | Flush Mount | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a high switching frequency of 4200 Hz and an IP67 rated enclosure for dust and water protection. Ideal for object detection and position sensing in manufacturing lines, this sensor ensures reliable performance with a sensing range of 1 mm and a robust stainless steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Switching frequency: 4200 Hz
- Switching output: PNP, normally open
- Connection: 3-wire cable, 2 m PUR
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread size: M4 x 0.5
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 4mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4200 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Cable connection type with 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

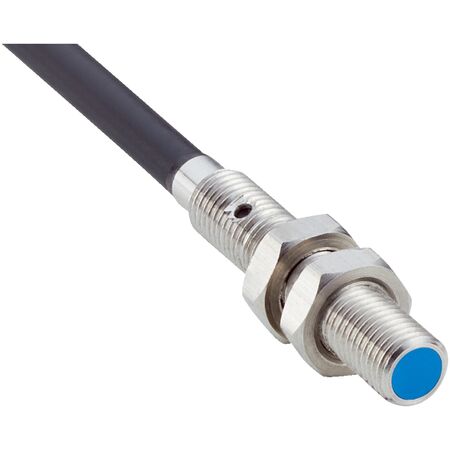

The SICK IMM04-01BPSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
