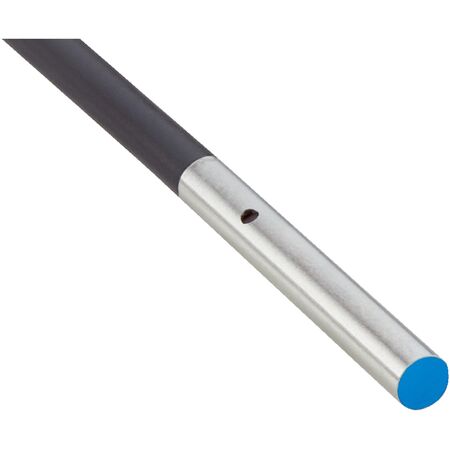

Inductive Proximity Sensor | IP67 Rated | 4,200 Hz Switching Frequency | Stainless Steel Housing | by SICK
Inductive proximity sensor designed for reliable metal object detection in industrial automation. With a high switching frequency of 4,200 Hz and an IP67 rated enclosure, it ensures durability and performance in demanding environments. Ideal for machine safety and position sensing, this sensor features a flush installation type and a sensing range of 1 mm, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 4,200 Hz
- Sensing range (Sn): 1 mm
- Safe sensing range (Sa): 0.81 mm
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Cable: 3-wire, 2 m PUR cable, diameter 2.5 mm
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 22mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A (AISI 303) material
- Flush installation type with 3 mm diameter sensing face
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4,200 Hz
- PNP switching output with normally open function
- Cable connection type: 3-wire, 2 m PUR cable
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring, mounting, and compliance with safety standards.
Applications
- Industrial automation for metal object detection
- Machine safety and position sensing
- Factory automation requiring high switching frequency and durability
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM03-01BPSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable metal object detection.
