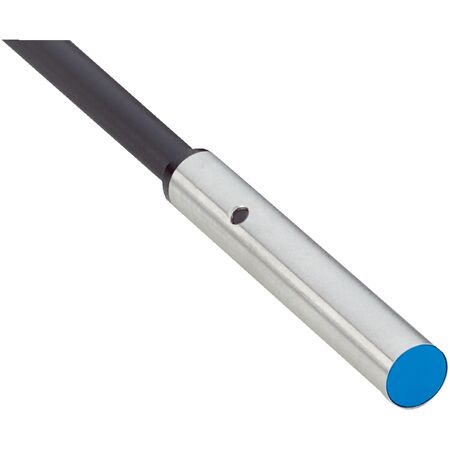

Inductive Proximity Sensor | IP67 Rated | 4,800 Hz Switching Frequency | Stainless Steel Housing | by SICK
The Inductive Proximity Sensor IHM04-1B5PSVU2S is designed for precise metal detection in industrial automation. With a sensing range of 1.5 mm and a high switching frequency of 4,800 Hz, it ensures reliable performance in harsh environments. Built with a durable stainless steel housing and IP67 rating, this sensor is perfect for machine safety and positioning applications, providing long-lasting operation and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 4,800 Hz
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Output type: PNP, normally open
- Connection: 3-wire cable, 2 m length, PUR material
- Enclosure rating: IP67
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 25mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 4 mm diameter sensing face
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,800 Hz
- PNP switching output with normally open function
- Cable connection type: 3-wire, 2 m PUR cable
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for metal detection
- Machine safety and positioning
- Factory automation requiring precise sensing
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM04-1B5PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
