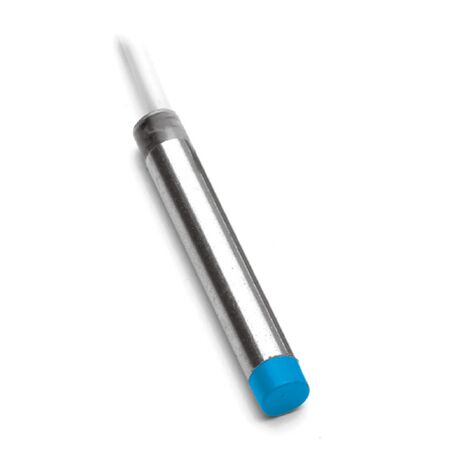

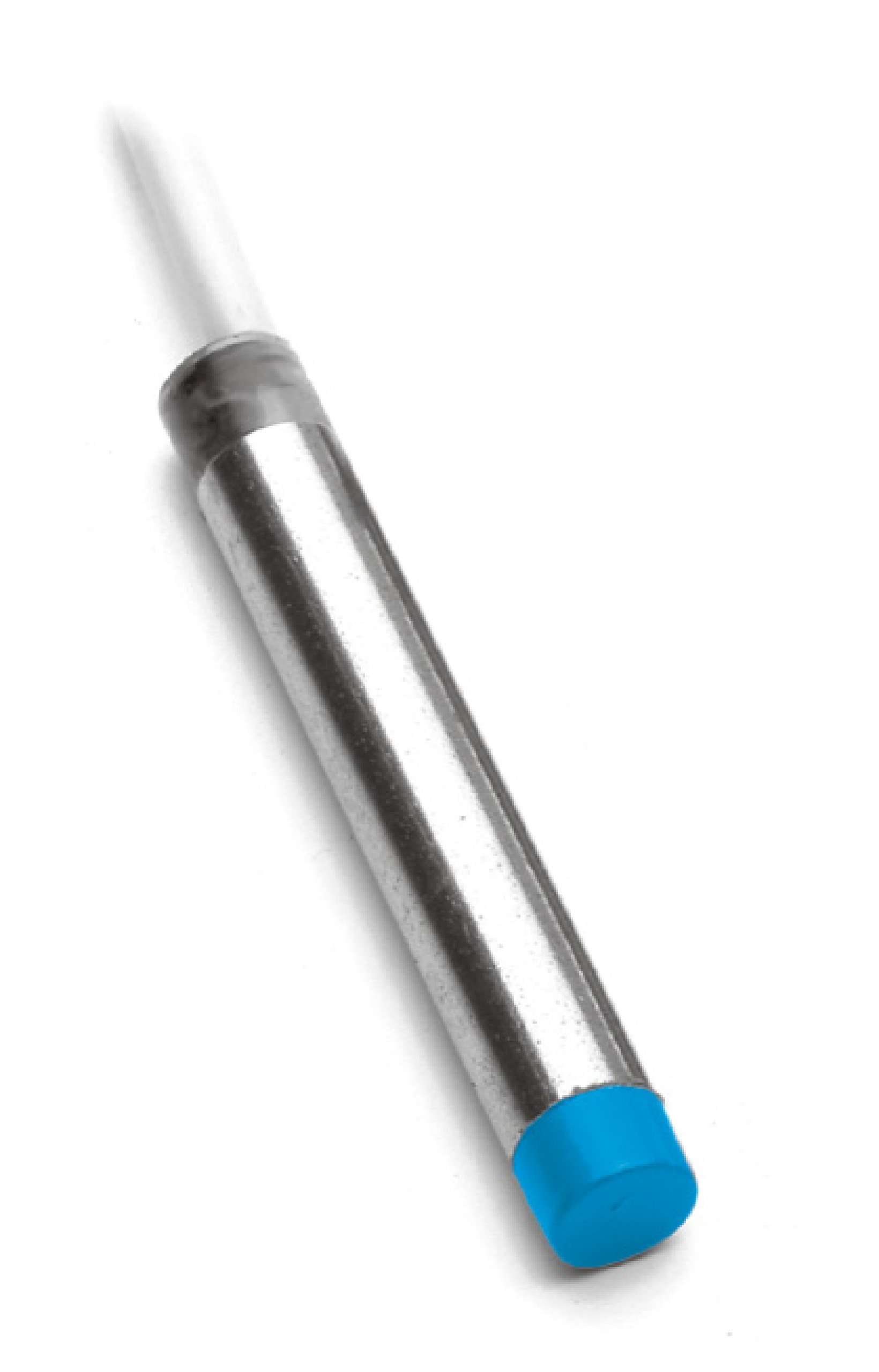

Inductive Proximity Sensor IH06-04NNS-VW1 | IP67 Rated | 4mm Sensing Range | 1800Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IH06-04NNS-VW1 is designed for reliable object detection in industrial automation. With a sensing range of 4 mm and a high switching frequency of 1,800 Hz, this sensor is perfect for manufacturing process control and position sensing in machinery. Its durable stainless steel housing and IP67 rating ensure performance in harsh environments, making it an ideal choice for non-contact detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 1,800 Hz
- Connection type: Cable, 3-wire, 2 m PVC cable
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.1 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, POM
- Dimensions (H x L x W): 6.5mm x 45mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 1,800 Hz
- NPN normally open switching output
- Cable connection type with 3-wire, 2 m PVC cable
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- RoHS compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IH06-04NNS-VW1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
