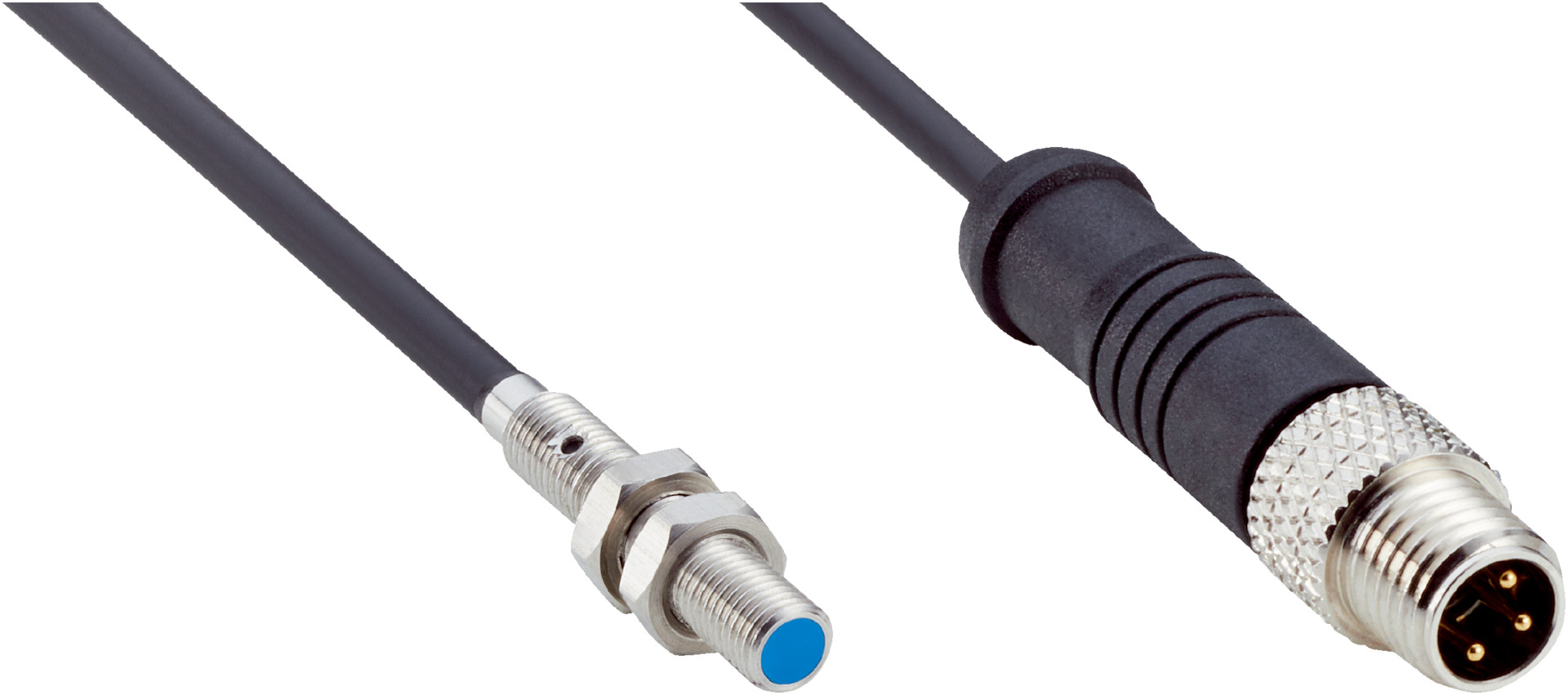

Inductive Proximity Sensor | IP67 Rated | 5,000 Hz Switching Frequency | Stainless Steel Housing | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 5,000 Hz and an IP67 rated enclosure for dust and water protection. Ideal for precise object detection and position sensing in manufacturing lines, this sensor ensures reliable performance with a sensing range of 0.6 mm and robust stainless steel housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 5,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with M4 x 0.5 thread size
- Sensing range of 0.6 mm with safe sensing range of 0.486 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NO output function
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and IO-Link configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables smart communication reducing unnecessary replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

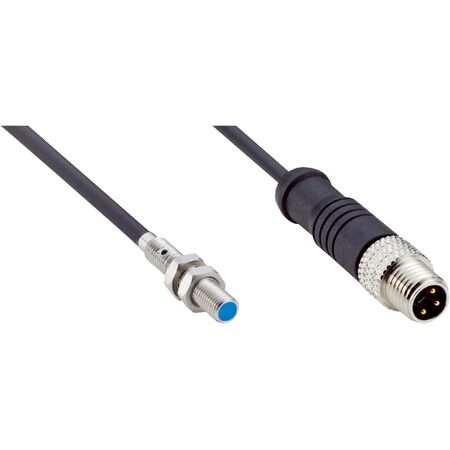

The SICK IMM04-0B6PSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and precise proximity sensing applications.
