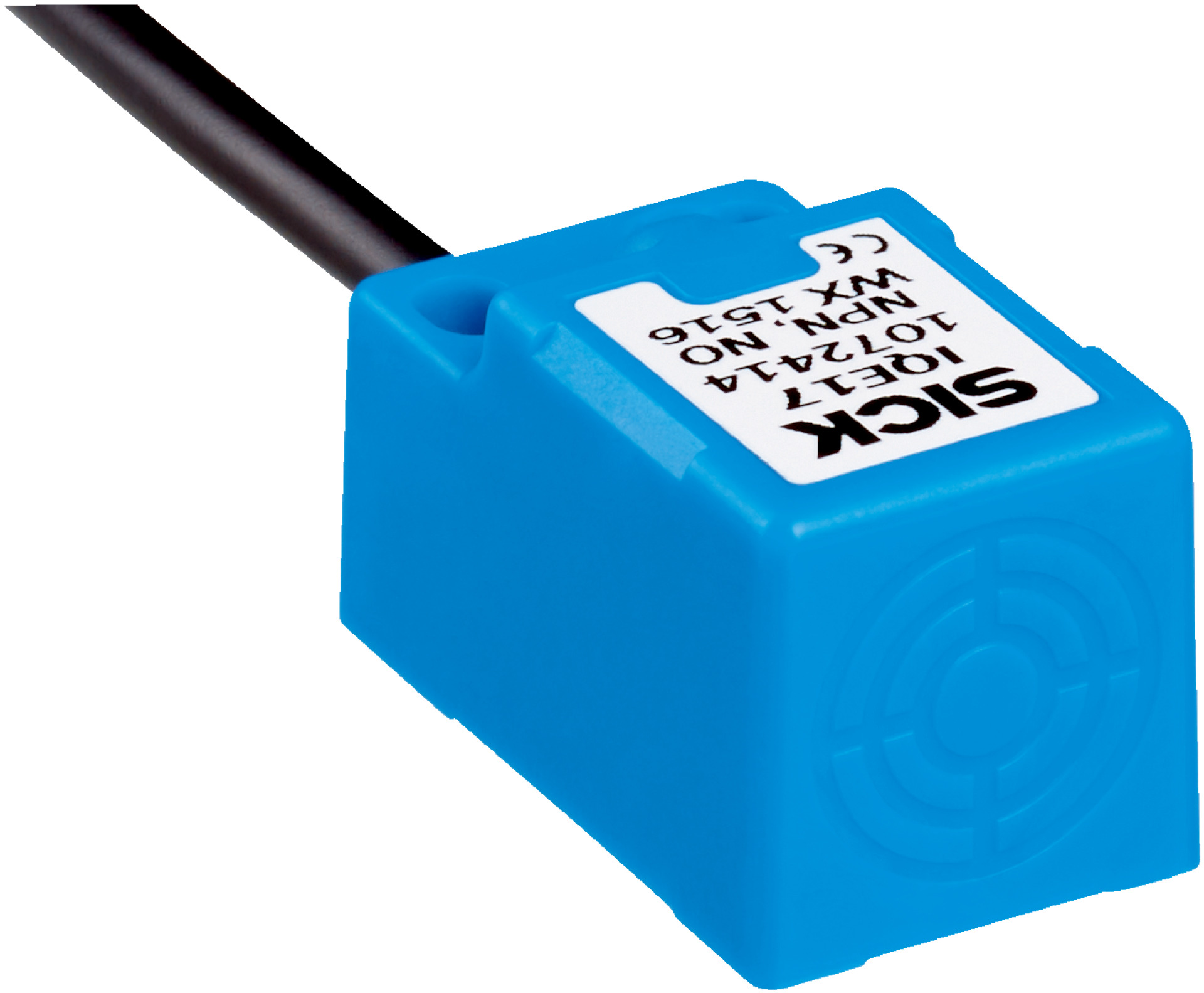

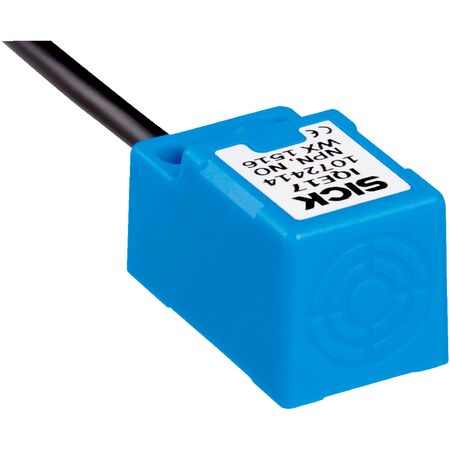

Inductive Proximity Sensor | IP67 Rated | 5mm Sensing Range | 1000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IQE17-05NNOKW3S is designed for reliable object detection in industrial automation. With a 5mm sensing range and a high switching frequency of 1,000 Hz, it ensures fast and accurate position sensing. Built for harsh environments, this sensor features an IP67 rated housing and operates within a wide temperature range of -25°C to +75°C, making it ideal for various applications in manufacturing lines and non-contact detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,000 Hz
- Sensing range (Sn): 5 mm
- Safe sensing range (Sa): 4.05 mm
- Output function: Normally Closed (NC), NPN output
- Electrical wiring: DC 3-wire
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Cable length: 3 m PVC cable
- Enclosure rating: IP67
- Operating temperature: -25°C to +75°C
- Housing material: Plastic
- Short-circuit and power-up pulse protection included
- Tightening torque max: 0.9 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 17mm x 29.5mm x 17mm
- Weight: 0.1 kg
Key Features
- Rectangular plastic housing with IP67 protection rating
- Non-flush installation type with 5 mm sensing range
- High switching frequency of 1,000 Hz for fast response
- NPN normally closed switching output with 3-wire DC connection
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25°C to +75°C
- Cable connection with 3 m PVC cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing ensures long service life reducing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IQE17-05NNOKW3S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
