Inductive Proximity Sensor | IP67 Rated | 5mm Sensing Range | 500 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a 5mm sensing range. With a high switching frequency of 500 Hz, it ensures fast and reliable object detection, making it ideal for manufacturing lines and safety systems. Built for durability, this sensor operates efficiently in a wide temperature range from -25 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 500 Hz
- Sensing range (Sn): 5 mm
- Safe sensing range (Sa): 4.05 mm
- Electrical wiring: DC 3-wire
- Cable: 3-wire, 2 m PUR cable, diameter 4.6 mm
- Voltage drop: ≤ 2.5 V
- Ripple: ≤ 15%
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ±5%
- Temperature drift: ±10%
- Continuous current Ia: ≤ 200 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing material: Aluminum, GD Zn
- Sensing face material: Plastic, PBT
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 10mm x 25mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Flush installation type with 5 mm sensing range
- High switching frequency of 500 Hz for fast response
- PNP switching output with normally open function
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient operation minimizes power consumption
- Long mission time of 20 years reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

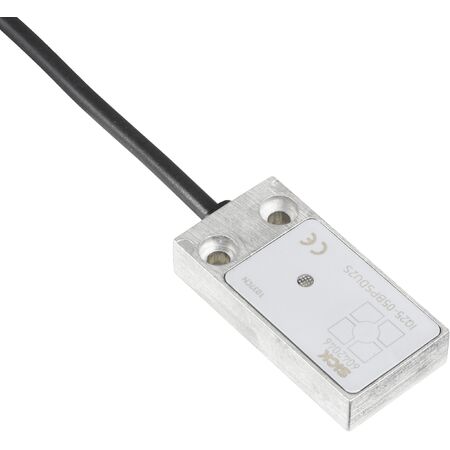

The SICK IQ25-05BPSDU2S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications.
