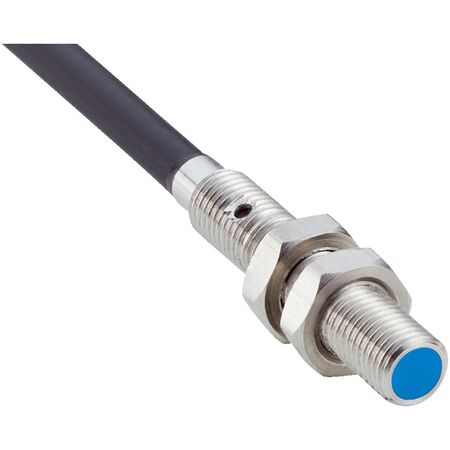

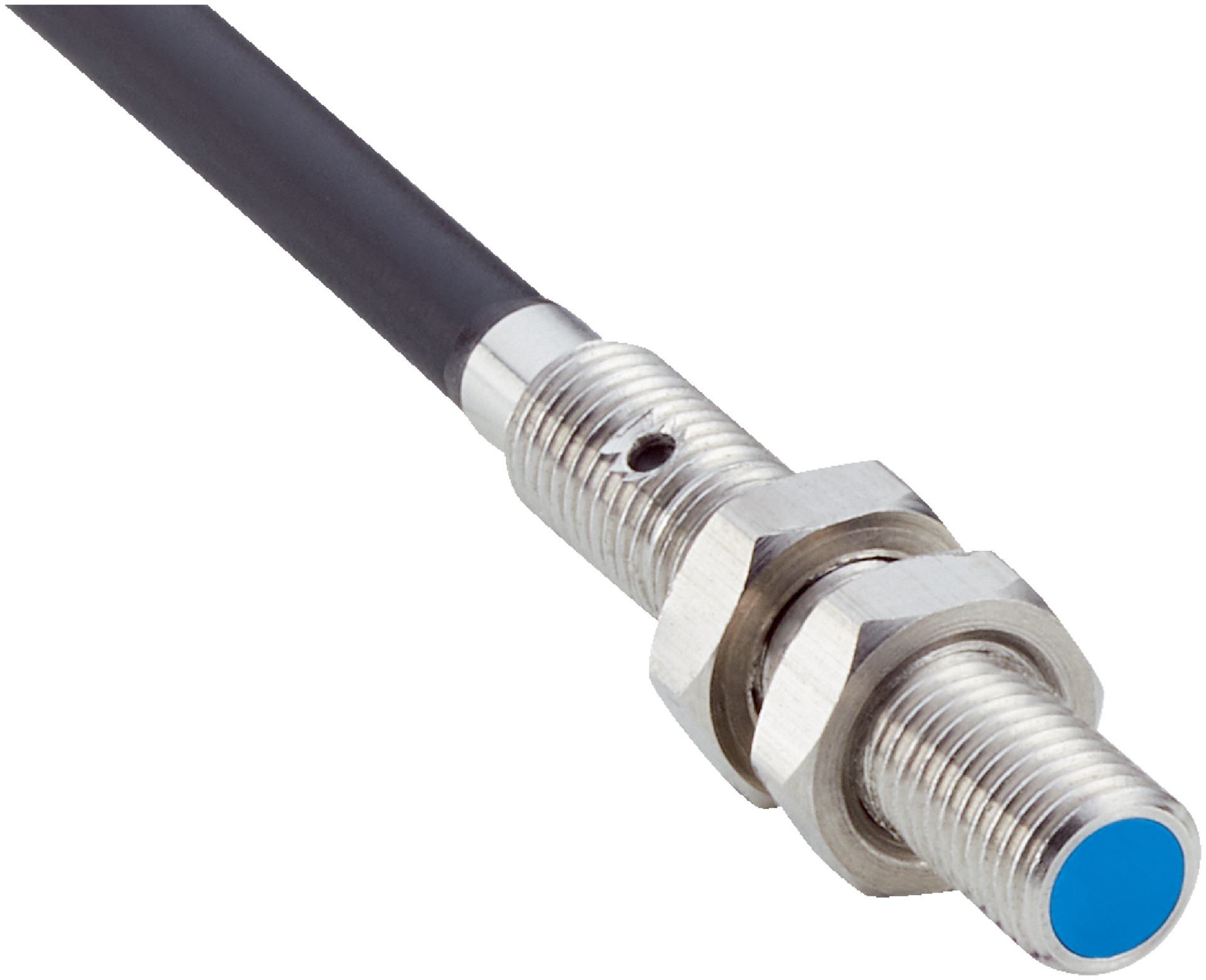

Inductive Proximity Sensor IMM04-01BPOVU2S | IP67 Rated | High Switching Frequency 4200 Hz | PNP Output | by SICK
The Inductive Proximity Sensor IMM04-01BPOVU2S is designed for industrial automation, featuring a high switching frequency of 4200 Hz and an IP67 rating for dust and water protection. With a robust stainless steel housing and a sensing range of 1 mm, it's perfect for precise position sensing in manufacturing lines and safety control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Conductor size: 0.08 mm²
- Switching output: PNP, NC function
- Switching frequency: 4200 Hz
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Protection rating: IP67
- Thread size: M4 x 0.5
- Housing length: 22 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4200 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-01BPOVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
