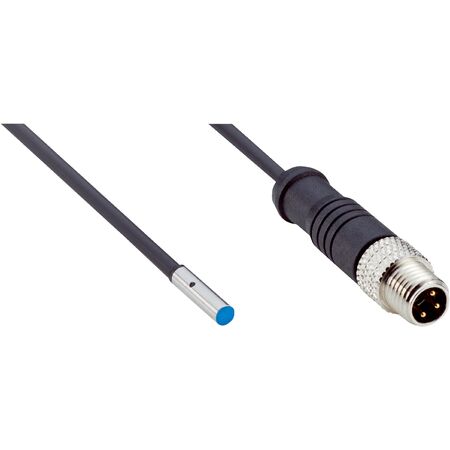

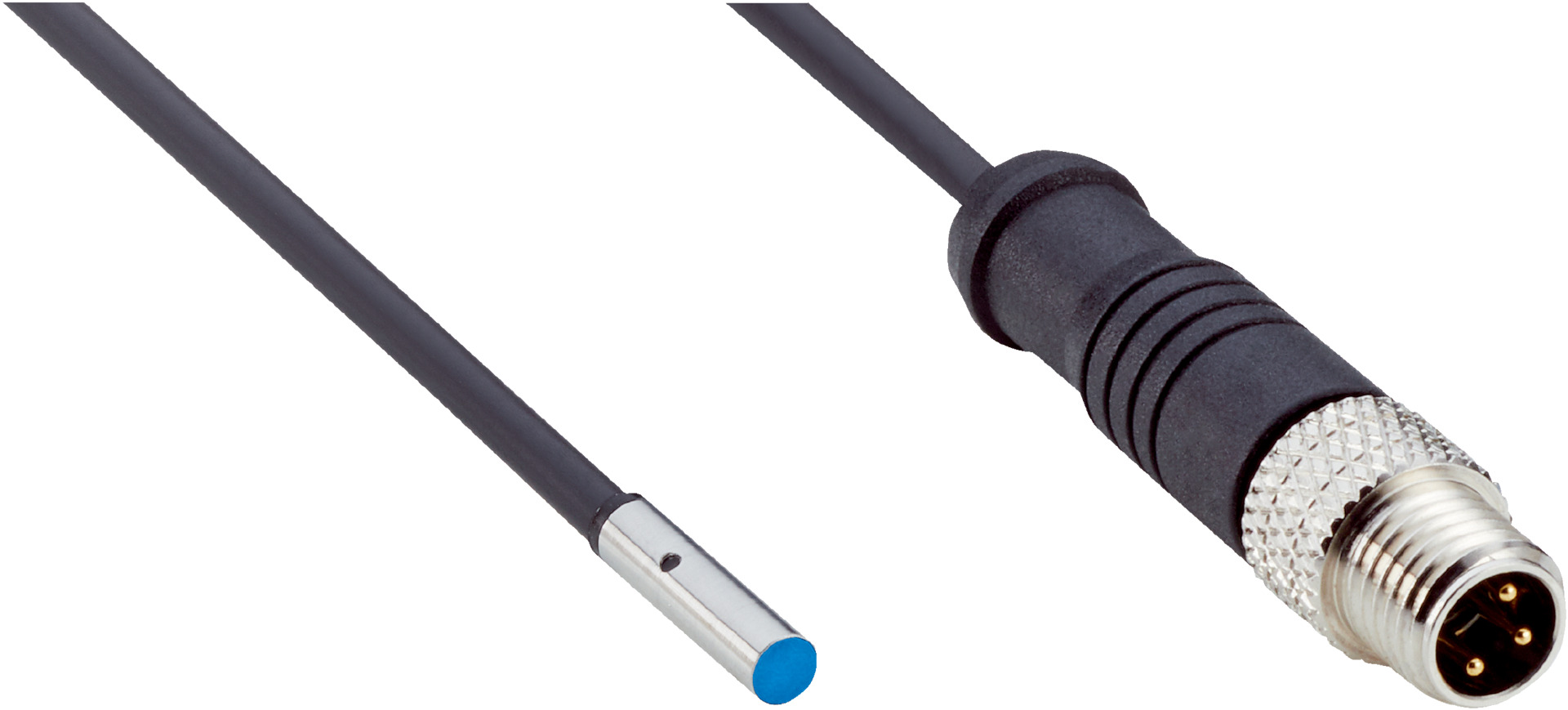

Inductive Proximity Sensor IHM03-01BNSVR8K | IP67 Rated | High Switching Frequency | Short-Body Design | by SICK
The Inductive Proximity Sensor IHM03-01BNSVR8K is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm and a high switching frequency of 4200 Hz. With its durable stainless steel housing and IP67 rating, this sensor is perfect for metal detection applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of Sr: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter 2.5 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Switching output: NPN, normally open
- Electrical wiring: DC 3-wire
- EMC: EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 3mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 3 mm diameter
- Flush installation type
- High switching frequency of 4200 Hz
- NPN normally open switching output
- Cable with M8, 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-01BNSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
