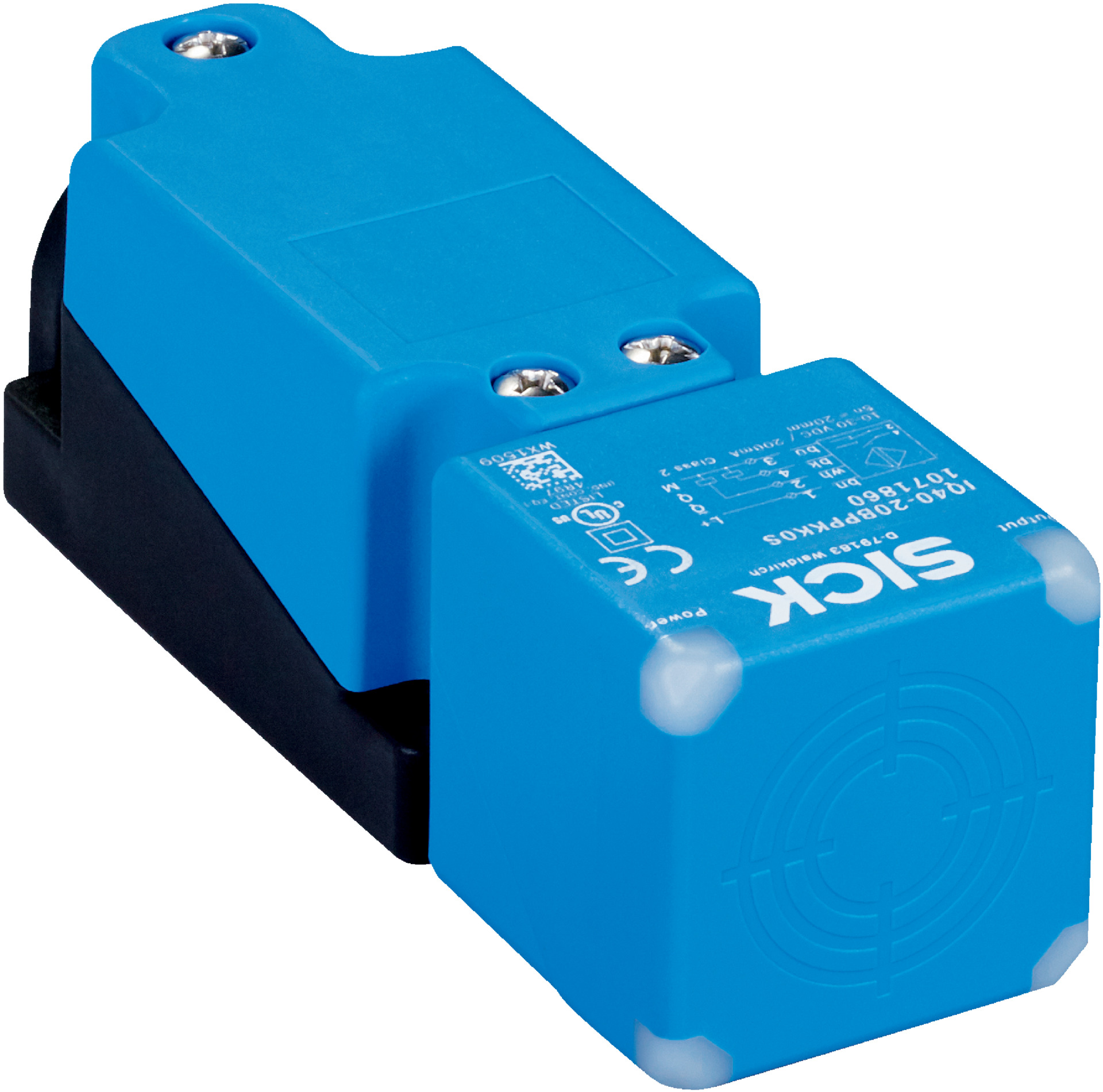

Inductive Proximity Sensor IQ40-20BPPKK0S | IP67, IP68, IP69K Rated | 20mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor IQ40-20BPPKK0S is designed for industrial automation, featuring a robust IP67, IP68, and IP69K enclosure rating for high protection in harsh environments. With a sensing range of 20 mm and a PNP complementary output, it ensures reliable object detection and position sensing in manufacturing lines. Ideal for applications requiring durability and precision, this sensor operates efficiently across a wide temperature range from -25 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Cable gland clamping area: M20 1.5
- Wire size: ≤ 2.5 mm²
- Protection class: II
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +85 °C
- Ambient storage temperature: –40 °C to +85 °C
- Housing and sensing face material: Plastic, PA 66
- Switching output: PNP complementary
- Switching frequency: 150 Hz
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 40mm x 118mm x 40mm
- Weight: 0.15 kg
Key Features
- Standard design housing with plastic PA 66 material
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 150 Hz with PNP complementary output
- Electrical wiring: DC 4-wire
- Enclosure rating IP67, IP68, IP69K for high protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Wide ambient operating temperature range from –25 °C to +85 °C
- Cable gland connection type with M20 1.5 clamping area
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- High protection ratings prevent environmental damage and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ40-20BPPKK0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
