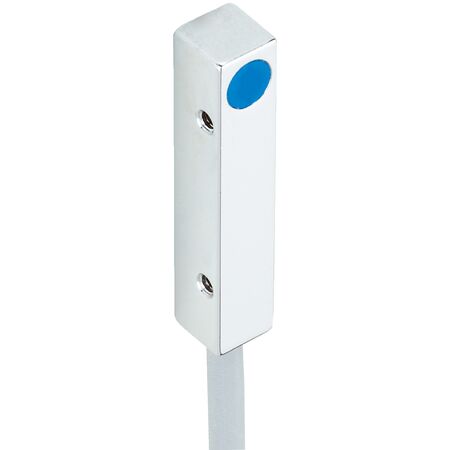

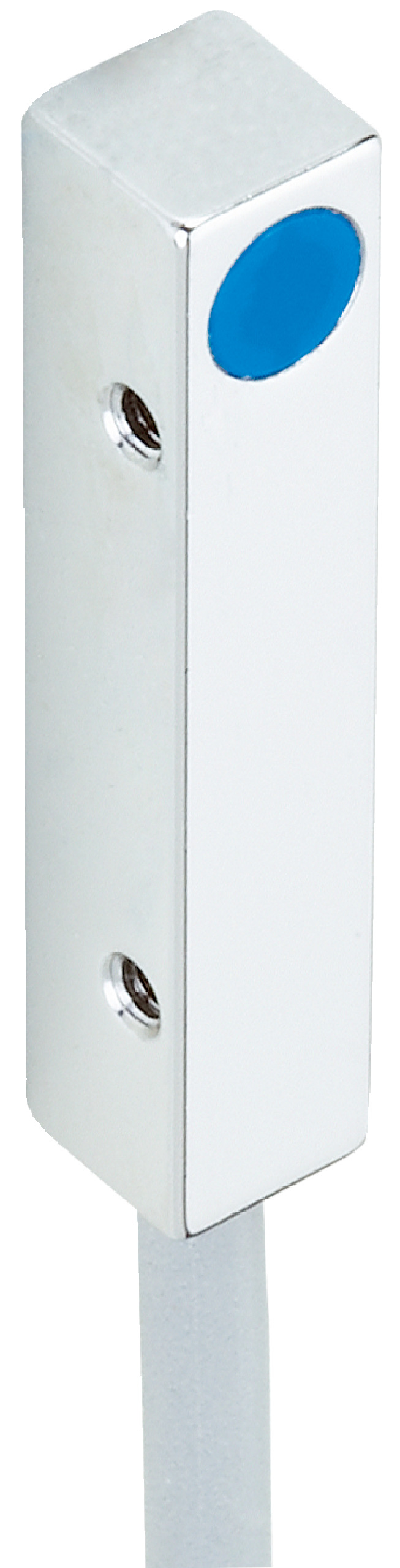

Inductive Proximity Sensor | IP67 Rated | NPN Normally Open Output | 5,000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a high switching frequency of 5,000 Hz and a sensing range of 0.8 mm, it’s perfect for precise position sensing in manufacturing lines and safety control systems. Built with a durable brass housing, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, 3-wire, 2 m length
- Connection type: Cable, 3-wire
- Switching output: NPN, normally open (NO)
- Enclosure rating: IP67
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Short-circuit and power-up pulse protection included
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass housing with chromium plating
- Flush installation type
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ05-0B8NS-ZU1 inductive sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
