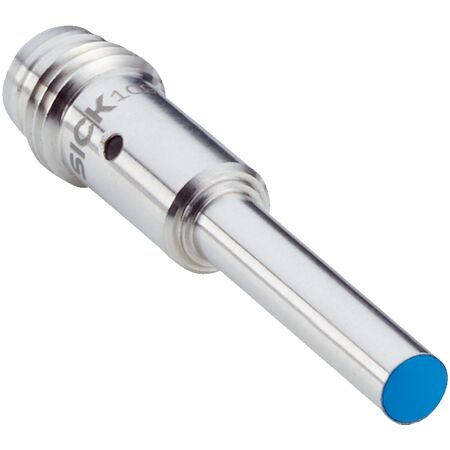

Inductive Proximity Sensor | IP67 Rated | Stainless Steel Housing | 4,800 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM04-1B5PSVT0S is designed for reliable metal detection in industrial automation. With a robust IP67 rated stainless steel housing and a high switching frequency of 4,800 Hz, it ensures precise position sensing even in harsh environments. Ideal for machine safety and control systems, this sensor operates efficiently across a wide temperature range from -25 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Switching output: PNP, normally open
- Switching frequency: 4,800 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Ambient operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 4mm x 38mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 4 mm diameter sensing face
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,800 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for metal detection
- Position sensing in manufacturing lines
- Machine safety and control systems
- Robust sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM04-1B5PSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
