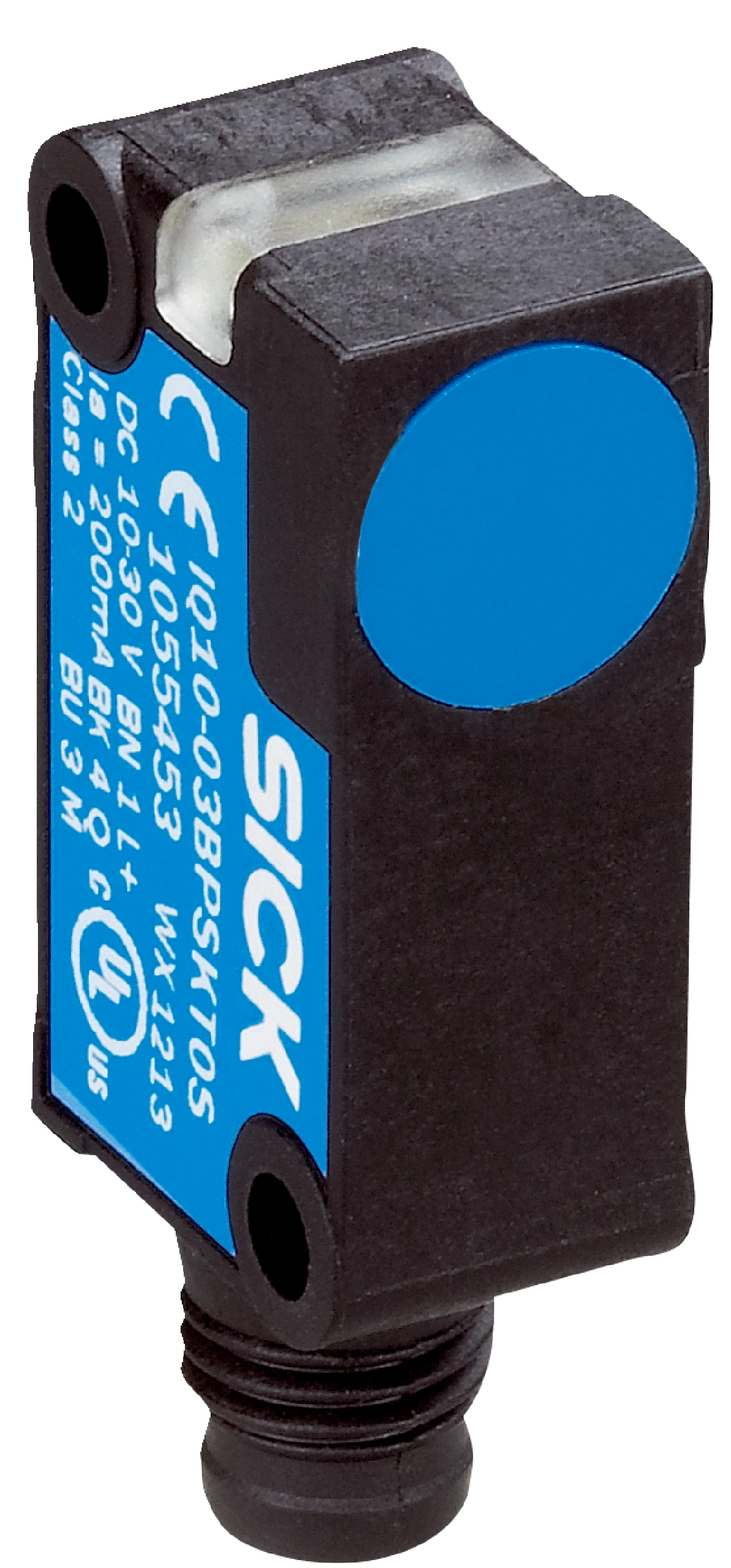

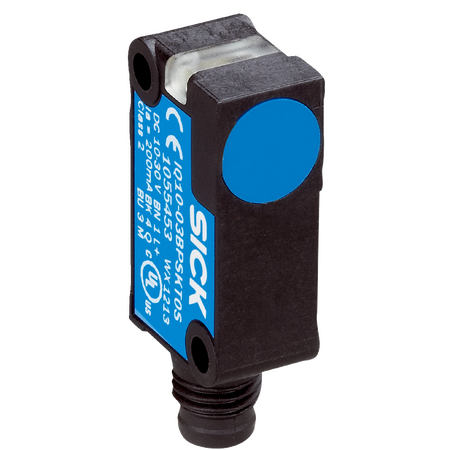

Inductive Proximity Sensor IQ10-03BPSKT0S | IP68 Rated | 3mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IQ10-03BPSKT0S is designed for industrial automation, featuring a robust IP68 rated housing and a sensing range of 3mm. With a high switching frequency of 2000Hz, it ensures fast and reliable object detection, making it ideal for manufacturing lines and safety systems. Built for durability and efficiency, this sensor is perfect for precise proximity sensing in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor, Proximity Switch, Inductive Sensor IQ10, SICK Proximity Sensor
Technical Specifications
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Housing material: Plastic, VISTAL®
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Connection type: Connector M8, 3-pin
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rating for robust protection
- Flush installation type for seamless integration
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –30 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces environmental damage and waste
- Energy-efficient operation minimizes power consumption in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ10-03BPSKT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
