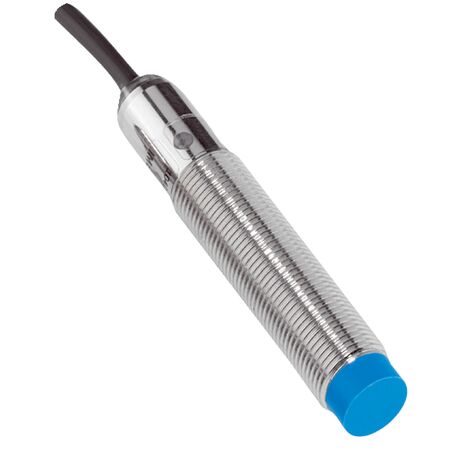

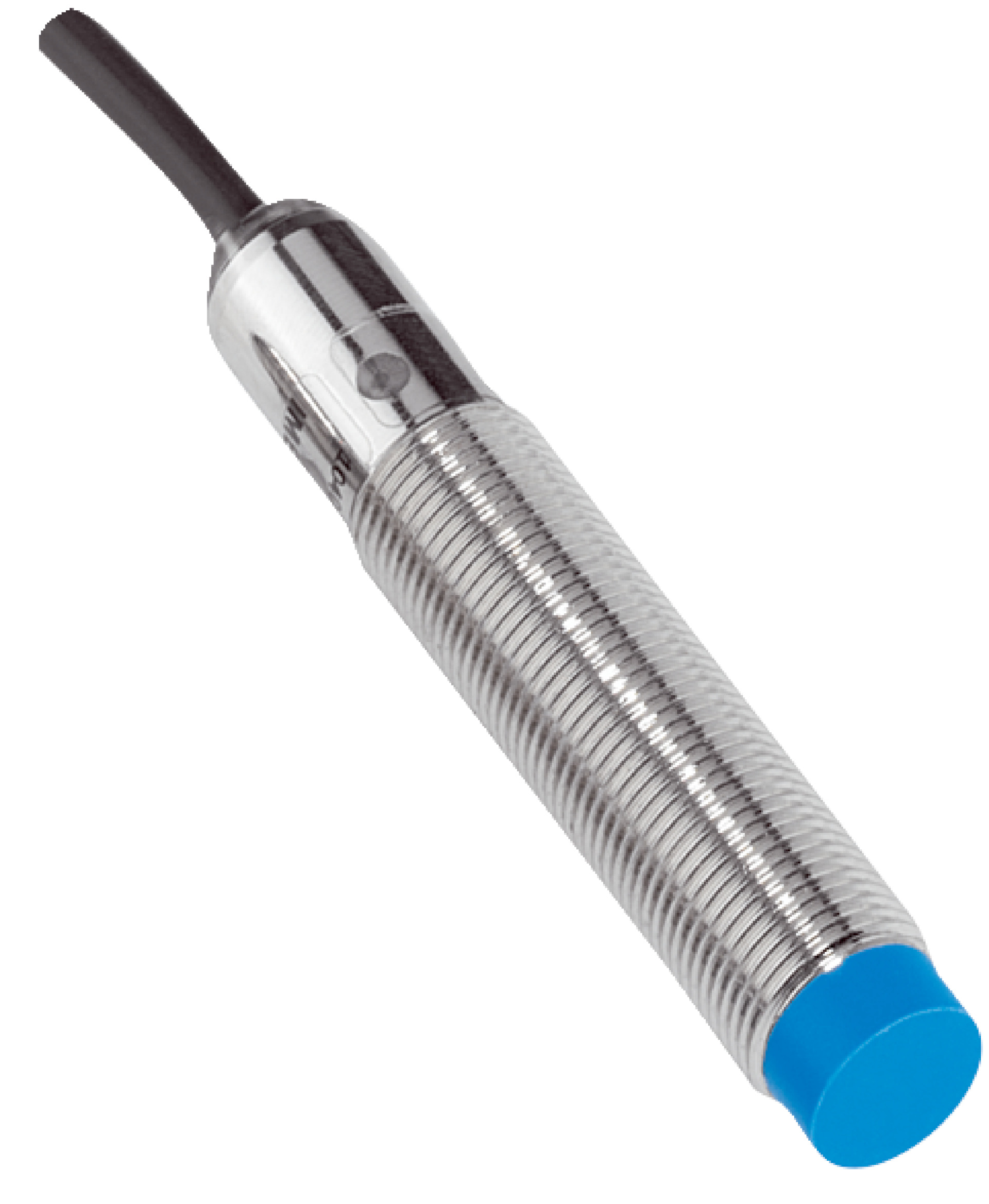

Inductive Proximity Sensor M12 | 10mm Sensing Range | PNP NC Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 10mm sensing range and PNP normally closed output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments and manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally closed (NC)
- Switching frequency: 400 Hz
- Sensing range (Sn): 10 mm
- Safe sensing range (Sa): 8.1 mm
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Cable: 3-wire, 2 m PVC cable, 0.25 mm² conductor size
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Operating temperature: -25°C to +75°C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 10 mm sensing range
- Non-flush installation type
- Switching frequency of 400 Hz with PNP normally closed output
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME12-10NPOZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
